Transformer moisture absorber

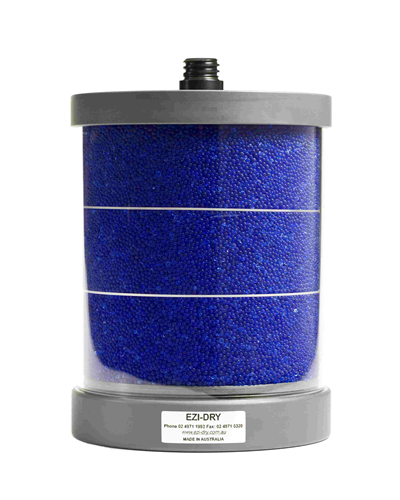

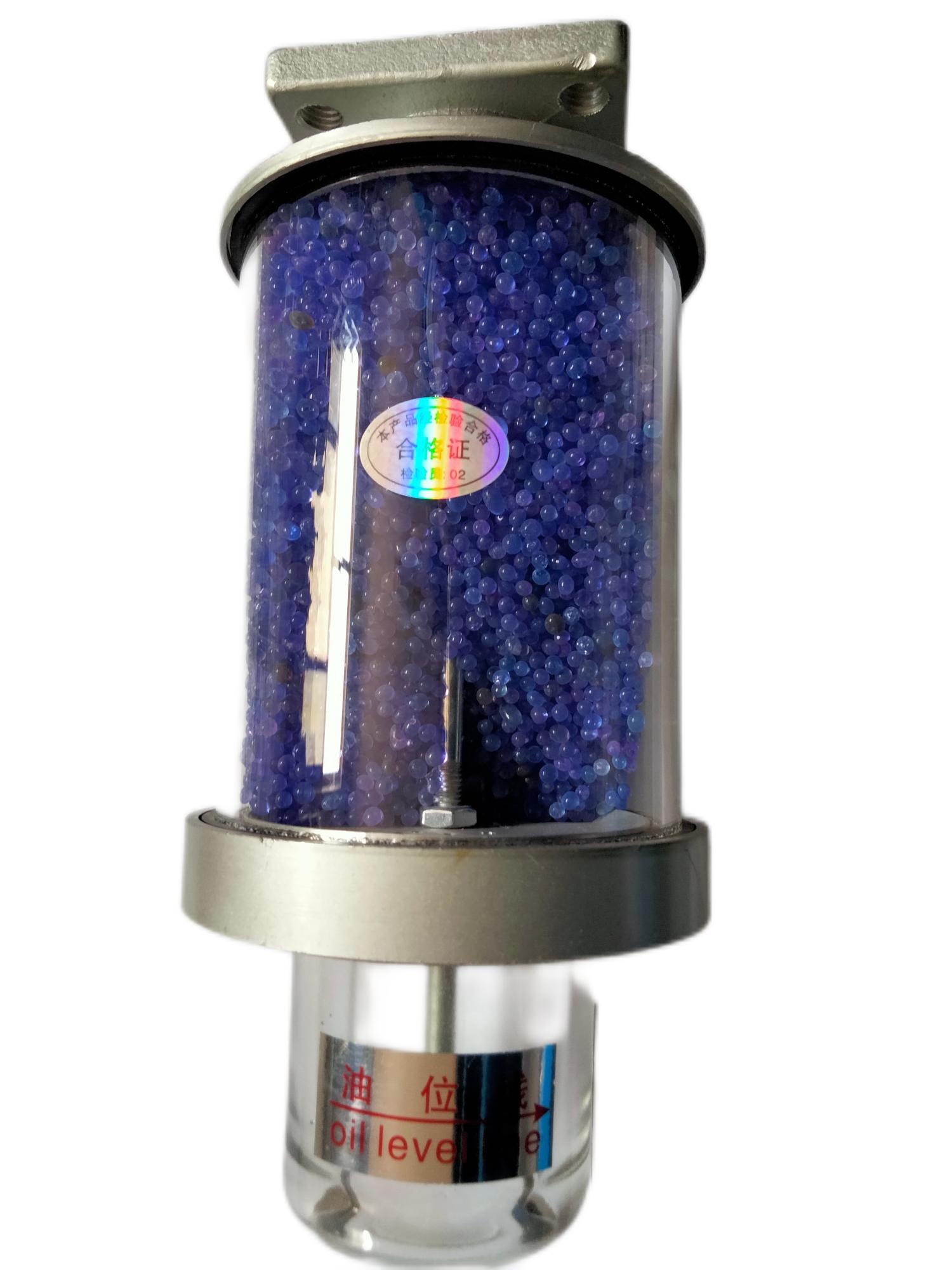

Transformer moisture absorber, also known as transformer respirator or or transformer silicone tank, is used to adsorb moisture entering the air of the transformer oil pillow capsule and diaphragm, remove and dry impurities and moisture entering the air of the transformer oil storage cabinet capsule due to changes in transformer oil temperature, to prevent the transformer from getting damp and ensure the insulation strength of the transformer oil.

The transformer moisture absorber is installed at the end of the pipeline connecting the oil conservator and air. When the temperature of the transformer oil rises, the expansion of the transformer oil causes the volume to increase, resulting in a smaller space on the conservator. The pressure rises, and the air is discharged through the moisture absorber. When the oil temperature decreases, the contraction volume of the oil decreases, causing a negative pressure to form in the conservator and the external air to be sucked in.

When air is sucked in, the moisture in the air is first absorbed by the transformer oil in the oil cup through the desiccant in the dehumidifier to ensure that the incoming air is dry. The main function of transformer oil in the oil cup is to prevent continuous contact between the hygroscopic agent and air, slow down the discoloration and dissolution rate of the hygroscopic agent, and extend the service life of the hygroscopic agent. Technical parameter adaptation environment: -30~43 ℃; Ventilation resistance: ≤ 0.01Mpa; Adsorption materials: 75% fine pore silica gel, 25% color developing silica gel, material particles φ 2-6mm; Adsorption capacity: (at a temperature of 20 ℃) Serial Number Model Remarks Serial Number Model Remarks 1. 0.2Kg for distribution transformers below 80KVA 8. 4Kg for distribution transformers below 31500KVA 2. 0.5Kg for distribution transformers below 200KVA 9. 5Kg for distribution transformers below 50000KVA 3. 0.7Kg for distribution transformers below 200KVA 10. 6Kg for distribution transformers below 100000KVA 4. 1Kg for distribution transformers below 630KVA 11. 7Kg for distribution transformers below 180000KVA 5. 1.5Kg for distribution transformers below 2000KVA 12. 8Kg for distribution transformers below 300000KVA 6. 2Kg for distribution transformers below 3150KVA 13 10kg transformer is equipped with a main transformer of around 500000KVA, and 7 3kg transformer is equipped with a main transformer of less than 10000KVA.

The characteristics of transformer hygroscopic device: 1. Low energy consumption. The transformer hygroscopic device uses a heater for heating, and through the adjustment of the transformer, the water vapor in the hygroscopic device can evaporate at a lower temperature, thereby saving energy. 2. Significant moisture absorption effect. Due to the function of the heater, the transformer moisture absorber can quickly convert the moisture in the moisture absorbing device into steam, improving the efficiency of moisture absorption. And, during the moisture absorption process, maintain appropriate indoor humidity. 3. Easy to operate. Transformer moisture absorbers usually use one click operation, and users only need to turn on the power switch to achieve automatic moisture absorption function. The operation process is simple and convenient.
