DIN Standard High Voltage Bushing: Complete Fundamental Technical Guide for Oil-Immersed Single-Phase Transformers
Table of Contents
- Definition & Core Functional Roles of DIN Bushing
- Core DIN Regulatory Standards Governing HV Transformer Bushings
- Standard Structural Components of All DIN Bushings
- Material Classification & Performance Comparison Table (Porcelain vs Composite DIN Bushing)
- Full Standard Specification Table: DIN 15kV / 24kV / 35.5kV Oil Immersed Bushings
- Universal Engineering Advantages of DIN Standard HV Bushings
- Global Standard Application Scenarios of DIN Bushings
- Closing Summary for Electrical Engineers & Procurement Teams
1. Definition & Core Functional Roles of DIN Bushing
A DIN bushing is a standardized insulating penetration component designed per specifications published by Deutsches Institut für Normung (DIN), exclusively engineered for oil-filled single-phase and small three-phase distribution transformers across European, Middle Eastern, Southeast Asian and African power infrastructure markets. As the critical bridge between internal transformer live windings and external overhead power cables, every DIN high voltage bushing executes three irreplaceable core industrial functions simultaneously.
First, electrical isolation: It separates energized central conductive stems from grounded metal transformer tanks to eliminate leakage current, surface flashover and short-circuit faults. Second, mechanical load bearing: The standardized DIN flange and terminal thread structure supports tensile and bending stress from overhead cable connection without insulation deformation. Third, oil-tight sealing: Matching metric nitrile rubber gaskets form a fully sealed barrier to stop mineral insulating oil leaking out of transformer turret openings, a chronic failure risk of non-standard custom bushings.
DIN HV bushings cover medium voltage ranges from 15kV up to 35.5kV, the most widely adopted grades for residential, agricultural and light industrial single-phase transformers. Unlike unregulated custom insulators, all DIN bushing series adopt unified metric dimensional rules, including fixed flange bolt circle spacing, standardized M-series metric terminal threads and calibrated creepage distance benchmarks defined by DIN 42530 series standards. This strict dimensional unification delivers full cross-brand interchangeability, which drastically cuts production lead times for transformer OEMs and simplifies aftermarket spare part inventory management for power utilities.
For single-phase oil immersed transformers, DIN 15kV–35.5kV bushing models are specially optimized for compact tank layouts, narrow installation clearance and frequent thermal cycling caused by variable residential and agricultural load fluctuations. All DIN bushing designs add supplementary compliance with IEC 60137 international dielectric testing standards, unifying safety verification thresholds for cross-border transformer export tender documentation.
2. Core DIN Regulatory Standards Governing HV Transformer Bushings
All industrial medium voltage DIN transformer bushings follow a dedicated set of DIN specification documents, paired with harmonized EN and IEC standards for global tender acceptance:
- DIN 42530: General base standard for low & medium voltage oil transformer bushings, defining flange mounting hole patterns, sealing gasket metric dimensions, metal fitting anti-corrosion surface treatment and tank penetration assembly torque rules
- DIN 42531: 12kV–24kV porcelain HV bushing specifications, regulating minimum creepage distance, power frequency dry/wet withstand voltage and cantilever mechanical bending load limits
- DIN 42532: 35.5kV single-phase transformer bushing dedicated standard, controlling lightning impulse BIL surge levels, pollution-resistant shed profiles and internal oil-impregnated paper insulation structure
- DIN 42533: Heavy-current DIN bushing standard for continuous ratings 630A–3150A, applied to industrial heavy-load distribution transformers
- Supplementary Cross Compliance Standards: IEC 60137 (universal bushing dielectric test protocol), EN 50180 (modern European standard aligned with legacy DIN dimensional drawings)
Although several original DIN document revisions are no longer actively updated, their dimensional and performance criteria remain mandatory tender requirements in most EU, MENA and Southeast Asian power grid bidding projects. Transformer OEMs exporting equipment to these regions must adopt DIN-certified bushings to pass local utility inspection without extra third-party re-certification.

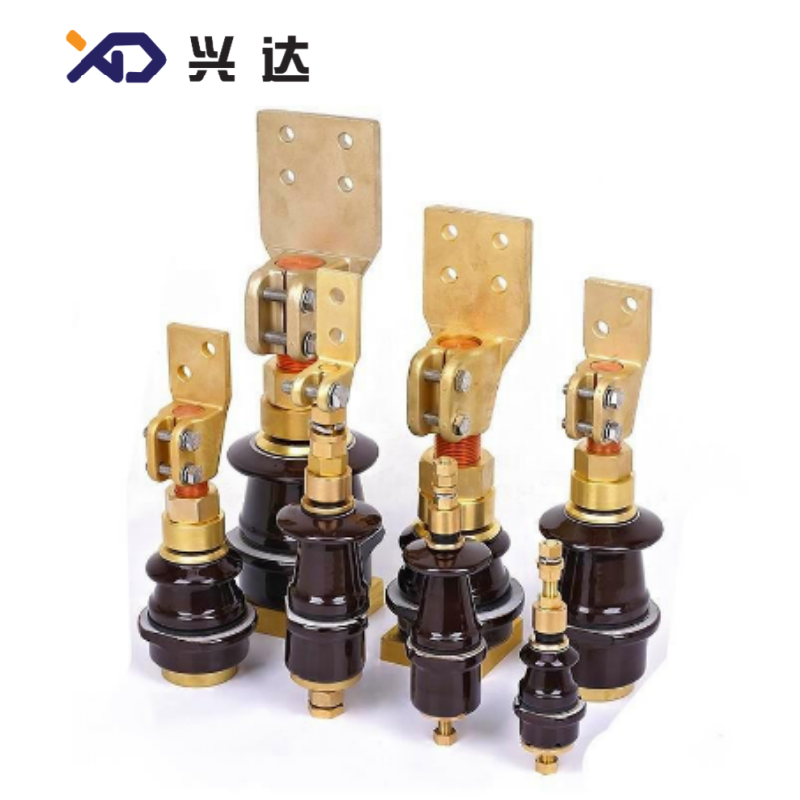

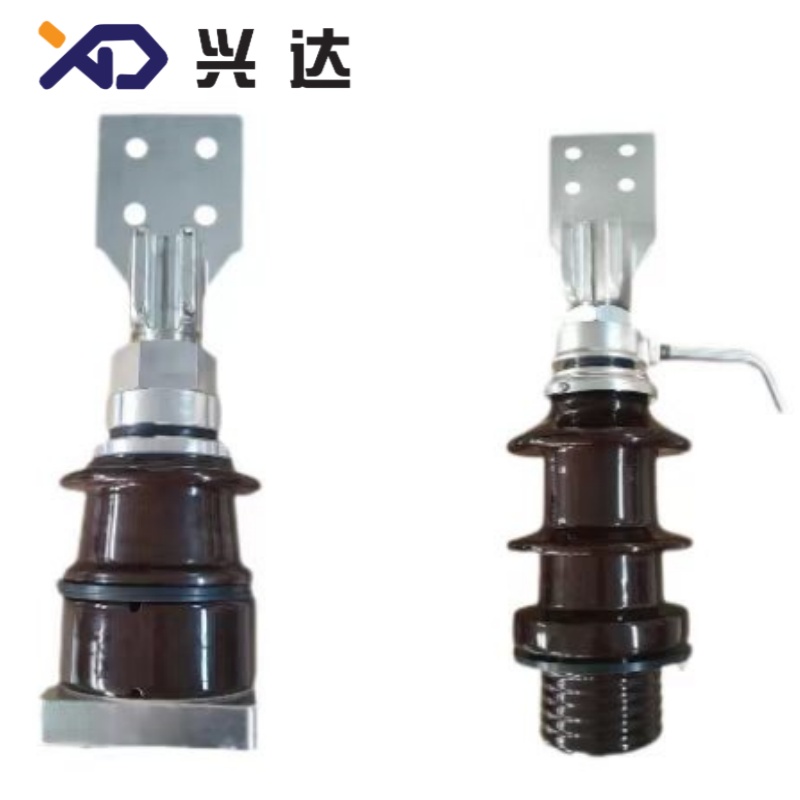

3. Standard Structural Components of All DIN Bushings
Every DIN standard HV bushing shares a unified five-part structure, regardless of voltage class or insulating material type:
- Central conductive stem: Solid copper or tin-plated brass rod with standardized metric M12, M16, M20, M24, M30 threads for external cable lug connection
- Internal insulating medium: Oil-impregnated kraft paper (OIP) for porcelain DIN bushings; resin-impregnated paper (RIP) optional for composite silicone DIN variants
- Outer multi-shed insulating housing: Glazed porcelain or hydrophobic silicone rubber, manufactured to DIN calibrated creepage distance standards
- Galvanized steel mounting flange: Fixed 6-hole metric bolt circle layout per DIN 42530 for tank turret installation
- Standard nitrile rubber sealing gasket: Fixed thickness metric size to realize zero-leakage oil sealing between flange and transformer tank
4. Material Classification & Performance Comparison Table (Porcelain vs Composite DIN Bushing)
| Performance Index | Porcelain DIN HV Bushing | Silicone Composite DIN HV Bushing |
|---|
| Outer Insulation Material | High-alumina vitrified glazed ceramic | Fiberglass reinforced epoxy tube + hydrophobic silicone rubber sheds |
| Total Unit Weight | Baseline 100%, heavy structure | 40%–70% lighter than equivalent porcelain models |
| Surface Hydrophobicity | Hydrophilic, easy to accumulate salt dust pollution | Permanent self-cleaning hydrophobic silicone surface, anti-fouling |
| Mechanical Shock Resistance | Brittle, risk of cracking under transportation vibration or impact | Flexible anti-shatter structure, resistant to minor collision damage |
| UV & Ozone Weather Resistance | Moderate; glaze aging appears after 15–20 years outdoor operation | Excellent stable performance over 30+ years coastal outdoor exposure |
| DIN Dimensional Compliance | Full matching DIN 42530–42532 flange, thread and mounting size | Identical metric mounting dimensions as porcelain DIN bushings, direct retrofit replacement |
| Standard Service Lifespan | 20–25 years for inland low-pollution grid sites | 28–35 years for coastal, mining and industrial heavy pollution zones |
| Primary Applicable Scenarios | Rural inland distribution transformers, indoor transformer substations | Coastal salt fog grids, chemical industrial parks, high-altitude mountain power infrastructure |
| Internal Insulation Type | Fixed oil-impregnated kraft paper (OIP) | Dual OIP/RIP insulation optional for special high-temperature projects |
5. Full Standard Specification Table: DIN 15kV / 24kV / 35.5kV Oil Immersed Bushings
All electrical and mechanical test data strictly follows DIN 42531 and DIN 42532 factory acceptance testing benchmarks; extended creepage variants (+30%, +50%) retain identical DIN flange mounting dimensions without transformer tank rework.
| DIN Model Code | Rated Voltage (kV) | Rated Continuous Current (A) | Power Frequency Dry Withstand (kV) | Power Frequency Wet Withstand (kV) | Lightning Impulse BIL (kV) | Minimum Standard Creepage Distance (mm) | Standard Flange Layout | Terminal Metric Thread | Continuous Operating Temperature Range |
|---|
| DIN MV15-250 | 15 | 250 | 95 | 40 | 125 | 305 | 6-hole DIN standard metric flange | M12 | -40°C ~ +120°C |
| DIN MV15-630 | 15 | 630 | 95 | 40 | 125 | 305 | 6-hole DIN standard metric flange | M20 | -40°C ~ +120°C |
| DIN MV15-1000 | 15 | 1000 | 95 | 40 | 125 | 310 | 6-hole DIN standard metric flange | M30 | -40°C ~ +120°C |
| DIN MV24-250 | 24 | 250 | 125 | 50 | 170 | 450 | 6-hole DIN standard metric flange | M12 | -40°C ~ +120°C |
| DIN MV24-630 | 24 | 630 | 125 | 50 | 170 | 450 | 6-hole DIN standard metric flange | M20 | -40°C ~ +120°C |
| DIN MV24-1000 | 24 | 1000 | 125 | 50 | 170 | 445 | 6-hole DIN standard metric flange | M30 | -40°C ~ +120°C |
| DIN MV35.5-250 | 35.5 | 250 | 170 | 70 | 200 | 607 | Deep lower shield DIN 6-hole flange | M16 | -40°C ~ +120°C |
| DIN MV35.5-630 | 35.5 | 630 | 170 | 70 | 200 | 607 | Deep lower shield DIN 6-hole flange | M24 | -40°C ~ +120°C |
| DIN MV35.5-1250 | 35.5 | 1250 | 170 | 70 | 200 | 615 | Deep lower shield DIN 6-hole flange | M30 | -40°C ~ +120°C |
6. Universal Engineering Advantages of DIN Standard HV Bushings
- Full Metric Interchangeability Reduces Production & Maintenance ExpenseAll DIN 15–35.5kV bushing series share unified metric flange bolt spacing, gasket sizes and terminal thread standards defined by DIN 42530. Transformer manufacturers can source replacement DIN bushings from any compliant component supplier without custom machining, cutting production cycle time and aftermarket maintenance labor costs for single-phase oil transformers. Power utility fleets realize cross-model spare part inventory unification, eliminating separate stock for different transformer tank designs.
- Compact Structure Matches Single-Phase Transformer Narrow Tank LayoutsDIN HV bushings adopt optimized slim tank penetration profiles tailored to small-size single-phase distribution transformer enclosures. The multi-layer standardized oil sealing structure eliminates recurring oil leakage defects widely seen in unregulated non-standard bushings. Internal OIP insulation thermal expansion coefficient matches mineral transformer oil, avoiding insulation separation and partial discharge risks under long-term temperature cycling.
- Dual DIN & IEC Dielectric Safety ComplianceEvery finished DIN bushing completes mandatory power frequency withstand, lightning impulse surge, partial discharge and temperature rise tests complying with both DIN and IEC 60137 specifications. Partial discharge levels are limited below 10pC at full rated operating voltage, eliminating gradual insulation degradation that triggers unplanned transformer power outages. All factory test records follow unified DIN data reporting formats for third-party audit and tender document submission.
- Ultra-Wide Environmental Operating AdaptabilityStandard DIN bushing designs support stable continuous operation from -40°C arctic cold climate sites to +120°C tropical hot transformer tank temperatures. Custom extended creepage shed options cover coastal salt fog, industrial chemical pollution and high-altitude mountain grid infrastructure projects. Both porcelain and composite DIN variants pass DIN standardized salt fog pollution aging tests for heavy-contamination Pollution Class III/IV zones.
- Simplified Cross-Border Transformer Export CertificationFor transformer OEMs exporting single-phase oil transformers to Europe, Middle East and Southeast Asian markets, DIN-certified HV bushings satisfy local utility tender standard requirements without additional third-party re-certification. This streamlines customs clearance, tender bid approval and local grid inspection workflows compared to ANSI-only non-DIN bushing designs, which often demand secondary dimensional and performance validation in target import countries.
- Long Service Lifespan With Minimal Routine MaintenanceGlobal power utility field operation data confirms DIN porcelain HV bushings deliver 20–25 years of trouble-free service; composite silicone rubber DIN bushing variants extend service life to 30+ years with only annual surface cleaning requirements. Longer equipment lifespans reduce power grid capital expenditure for distribution asset replacement cycles.
7. Global Standard Application Scenarios of DIN Bushings
DIN 15kV–35.5kV standard high voltage bushings are purpose-built for all oil-filled single-phase and small three-phase distribution transformer deployments across global power infrastructure sectors:
- Rural overhead residential single-phase distribution transformers (15kV and 24kV DIN bushings as primary selection)
- Agricultural irrigation pump station oil immersed single-phase transformers
- Remote off-grid solar energy storage auxiliary distribution transformers
- Small commercial building backup power single-phase oil transformers
- Mining site light-load distribution transformers (composite silicone DIN bushings preferred for dust and chemical pollution resistance)
- Coastal town residential grid transformers (extended creepage DIN bushing models)
- Railway auxiliary single-phase distribution oil transformers
- Containerized compact transformer units for mobile temporary power projects
- Global transformer OEM export assemblies targeting EU, MENA and Southeast Asian DIN-standard regional markets
- Small hydropower station auxiliary distribution transformers
- Industrial park low-capacity single-phase voltage regulation transformers
8. Closing Summary
DIN standard high voltage bushings remain the dominant medium voltage insulating component for oil immersed single-phase transformers in metric-standard global power markets, supported by unified DIN dimensional rules, dual DIN & IEC dielectric test compliance and dual porcelain/composite material options for diverse environmental conditions. Electrical engineers and procurement teams prioritizing cross-brand interchangeability, simplified export certification and long-term operational reliability will prioritize DIN 42530 series bushings for all medium voltage distribution transformer projects from 15kV to 35.5kV.
