15‑34KV /55A ANSI Bushing (Shovel‑face opening)

Overview

Medium‑voltage transformer bushings act as the essential insulation‑conduction interface, allowing live internal conductors to pass safely through the earthed metal tank of oil‑immersed distribution transformers. Among ANSI‑compliant power components, the 15‑34KV /55A ANSI Bushing (Shovel‑face opening) is a widely‑specified medium‑voltage bushing engineered for North‑American standard distribution transformer projects. Its core distinguishing feature is the shovel‑face opening on the mounting flange, a special cut‑out geometry that delivers precise mechanical positioning during tank‑cover assembly.

Power distribution networks following ANSI standards expose transformer bushings to continuous harsh operating stresses: power‑frequency voltage, lightning impulse surges, rated continuous current, short‑circuit fault currents, outdoor temperature fluctuations, coastal salt mist, industrial dust and atmospheric humidity. Conventional flat‑flange bushings may suffer rotational offset and misalignment during installation, which can cause sealing gaps, oil leakage, uneven stress distribution and accelerated component ageing. The shovel‑face opening structure effectively solves this long‑standing assembly difficulty by providing physical anti‑rotation positioning for the bushing body.

Improperly selected or poorly fitted ANSI bushings may trigger partial discharge, surface flash‑over, flange oil leakage and unexpected transformer shutdown. For transformer OEM designers, specification engineers and component purchasers, mastering the definition, performance merits, dimensional parameters, application scope and installation best practices of 15‑34KV /55A ANSI Bushing with shovel‑face opening is critical for reliable component selection.

What is 15‑34KV /55A ANSI Bushing (Shovel‑face opening)

The 15‑34KV /55A ANSI Bushing (Shovel‑face opening) is an ANSI‑standard medium‑voltage insulating component for oil‑immersed distribution transformers. It covers rated system voltages from 15 kV to 34 kV, with a continuous operating current rating of 55 A. The defining characteristic is the shovel‑face opening, a shaped cut‑out machined onto the mounting flange, which serves as an anti‑rotation locating feature when fitted onto the transformer tank cover.

This bushing assembly consists of multi‑shed porcelain insulating housing, internal conductive core rod, top connection terminal, shovel‑face opening flange, protective cover and bottom DT terminal. The multi‑umbrella porcelain shed design increases creepage distance, improving anti‑pollution outdoor performance. The protective cover shields upper connection hardware from UV radiation, rainwater and airborne contaminants. The DT terminal at the lower end establishes electrical connection with transformer internal windings.

A broad range of shed configurations are available, from 4‑shed up to 11‑shed variants. Models with higher creepage distance are intended for heavy‑pollution, coastal and high‑altitude field conditions. This bushing series is interchangeable with mainstream ANSI distribution transformer components, and is extensively deployed for pad‑mounted transformers, pole‑mounted transformers and auxiliary transformers built to North‑American grid specifications. Custom dimensional modifications are supported, including optional DT‑terminal upgrades on the bushing lower tail to satisfy special project requirements.

Core Advantages of 15‑34KV /55A ANSI Bushing (Shovel‑face opening)

Shovel‑face opening for anti‑rotation positioning

The proprietary shovel‑face opening geometry on the mounting flange provides physical locating constraint during tank‑cover installation. It prevents bushing body rotation when tightening mounting nuts and connecting external cables. This eliminates misalignment risk, maintains uniform gasket compression and greatly reduces the probability of flange‑side transformer oil leakage.

Full ANSI Standard Compliance

Designed, dimensioned and tested in accordance with ANSI requirements for medium‑voltage transformer bushings. It supports direct drop‑in replacement for existing ANSI‑spec bushings, convenient for new transformer production as well as field maintenance and spare‑part renewal.

Versatile Porcelain Shed Configurations

Multiple shed quantities from 4‑shed to 11‑shed deliver adjustable creepage distance and arcing distance. Engineers can select suitable variants for ordinary inland sites, salt‑fog coastal zones, heavy‑industrial pollution areas and high‑altitude locations to mitigate external flash‑over hazards.

Complete Matching Component Set

Supplied with protective cover and DT bottom terminal. The protective cover defends top‑end hardware against outdoor environmental degradation; the DT terminal creates stable conductive connection with transformer internal windings. All structural parts are optimized for oil‑immersed transformer operating environment.

Robust Electrical and Thermal Performance

Capable of withstanding rated power‑frequency voltage, lightning impulse overvoltage, continuous 55 A load current and transient short‑circuit current stresses. Optimized insulation coordination suppresses partial‑discharge activity under long‑term medium‑voltage service cycles.

Flexible Customization Compatibility

Multiple standard dimensional options cover different overall heights, flange dimensions and shed combinations. Standard tank‑opening dimensions simplify tank‑cover mechanical design for transformer manufacturers. Non‑standard dimensions and lower‑end DT‑terminal modifications can be implemented according to customer specifications.

General Technical Specifications

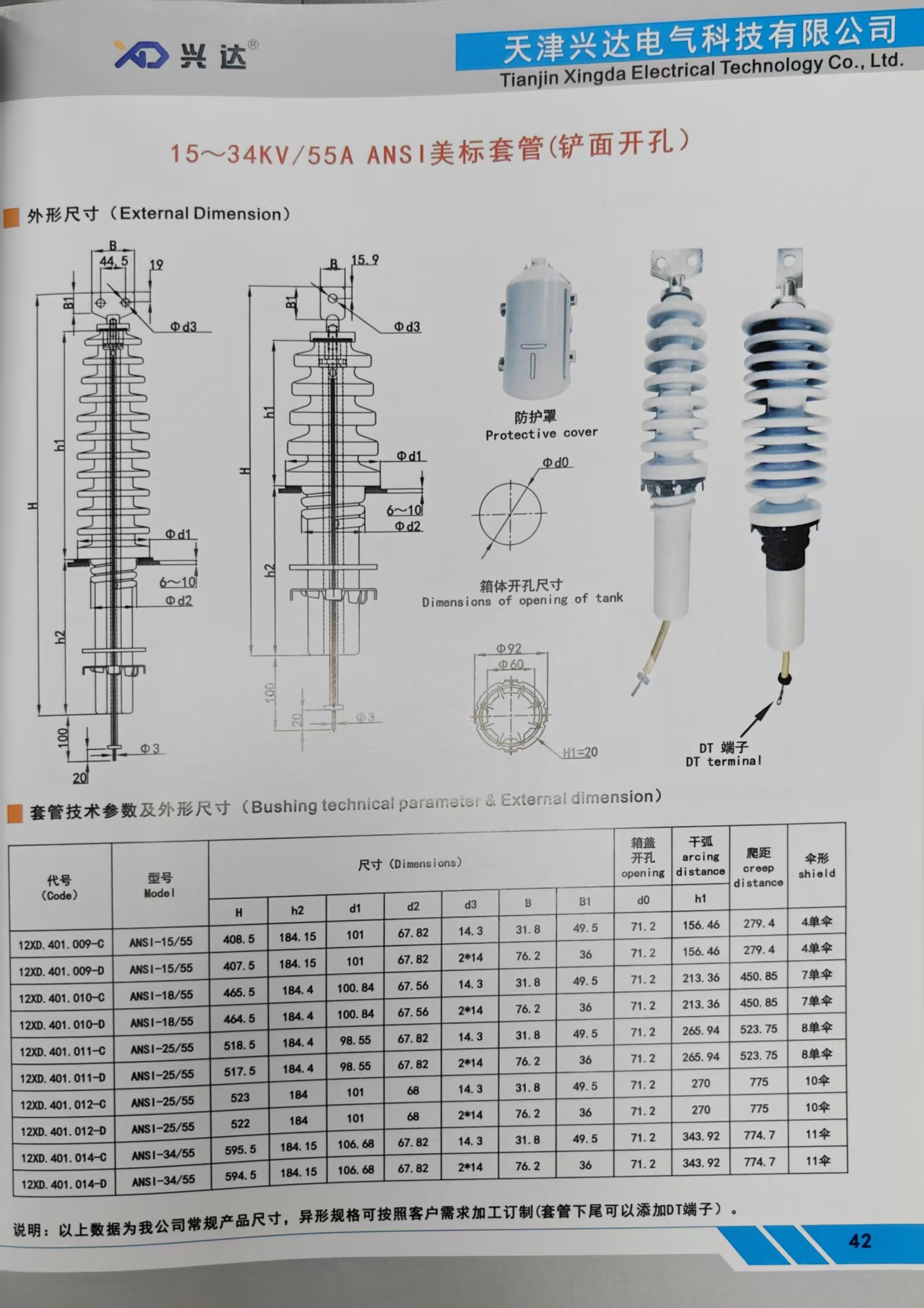

General industry technical data for 15‑34KV /55A ANSI Bushing (Shovel‑face opening). All dimensions in millimetres (mm).

Main Application Scenarios

Pad‑Mounted Distribution Transformers

Pad‑mount transformers are a primary application scenario within ANSI‑standard power grids. The shovel‑face opening delivers accurate anti‑rotation positioning during cabinet‑tank assembly, guaranteeing consistent flange sealing performance for outdoor pad‑mount equipment.

Pole‑Mounted Distribution Transformers

Pole‑mounted transformers installed on utility poles are subject to vibration and cable torque generated by wind load. The shovel‑face opening locking feature prevents bushing rotation caused by cable connection torque, protecting flange sealing integrity in exposed overhead installations.

ANSI‑Spec New‑Energy Auxiliary Transformers

Distributed solar and wind‑farm projects adopting North‑American transformer standards frequently select this bushing. Its stable mechanical positioning capability adapts to variable outdoor environmental conditions for renewable‑energy step‑down equipment.

On‑site Maintenance and Component Replacement

As an ANSI‑interchangeable spare part, this bushing is widely used for replacement of worn or damaged medium‑voltage bushings in existing distribution networks. The shovel‑face opening simplifies on‑site alignment work for field technicians.

Key Selection Guidelines

When specifying 15‑34KV /55A ANSI Bushing (Shovel‑face opening), engineering and procurement teams shall verify these critical parameters:

1. Rated system voltage: Select 15 kV, 18 kV, 25 kV or 34 kV model according to actual grid operating voltage.
2. Shovel‑face opening requirement: Confirm that anti‑rotation locating flange structure is required for your transformer tank‑cover design.
3. Creepage and arcing distance: Choose appropriate 4‑shed to 11‑shed configuration. Select higher‑shed‑count variants for coastal salt mist, industrial pollution and high‑altitude working sites.
4. Installation dimensions: Check overall height H, h2, flange dimension B / B1, diameter parameters and tank‑opening dimension d0, to ensure perfect matching with transformer tank‑cover cut‑out.
5. Terminal configuration: Confirm whether customized DT‑terminal on bushing lower tail is needed for internal winding connection.
6. Service environment: For high‑altitude, humid or corrosive atmospheres, upgrade to higher creepage distance shed versions to compensate for degraded external insulation performance.

Installation & Operating Best Practices

1. Carry out visual inspection before installation. Check porcelain housing for cracks or chipping; examine shovel‑face opening flange for deformation; verify top terminal and bottom DT‑terminal integrity.
2. Fit qualified sealing gasket between bushing flange and transformer tank cover. Align the shovel‑face opening locating profile with the corresponding positioning feature on tank cover to avoid rotation during bolt tightening. Tighten mounting bolts evenly in cross‑torque sequence to prevent oil leakage.
3. Complete internal connection between DT terminal and transformer winding conductors, ensure adequate contact pressure.
4. Make external cable connection on top terminal, apply manufacturer‑specified fastening torque, avoid over‑torque damage. Fit the protective cover after cable connection is finished.
5. After transformer oil filling, perform insulation resistance test and relevant high‑voltage tests before energization.
6. During long‑term service, implement periodic maintenance: inspect flange sealing status, porcelain shed surface contamination level and connection‑point tightening condition.

Common Potential Problems & Solutions

Flange oil leakage

Causes: misalignment of shovel‑face opening positioning, gasket deterioration, uneven bolt tightening torque. Solution: Correctly engage shovel‑face opening locating feature during mounting; use new qualified gaskets; apply cross‑pattern uniform bolt tightening.

Bushing rotation while fastening cables

Causes: shovel‑face opening locating feature not properly seated on tank‑cover locating profile. Solution: Double‑check mechanical fit of shovel‑face opening before tightening mounting hardware.

External surface flash‑over

Causes: insufficient creepage distance for polluted environment, heavy dirt accumulation on porcelain sheds. Solution: Select higher‑shed‑count bushing for contaminated locations; organize regular porcelain surface cleaning.

Connection‑point overheating

Causes: insufficient fastening torque, oxidized contact surfaces. Solution: Clean contact surfaces during assembly; follow standard torque values; schedule periodic re‑torque inspection.

Conclusion

15‑34KV /55A ANSI Bushing (Shovel‑face opening) is a specialized ANSI‑standard medium‑voltage insulating component for oil‑immersed distribution transformers. Its most distinctive feature is the shovel‑face opening flange structure, which delivers reliable anti‑rotation positioning during tank‑cover installation and effectively reduces oil‑leakage risks caused by component misalignment.

With multiple shed‑count options, standardized installation dimensions and support for custom DT‑terminal modification, this bushing fits pad‑mounted, pole‑mounted and new‑energy auxiliary transformers built to North‑American grid standards. Appropriate model selection according to system voltage, pollution grade and mechanical assembly requirements, paired with standardized installation and regular inspection, guarantees long‑term safe and stable operation. As global demand for ANSI‑standard transformer equipment expands, 15‑34KV /55A ANSI Bushing with shovel‑face opening maintains important application value for medium‑voltage distribution projects.
