15‑34KV/55A ANSI Bushing (Tension‑type bushing connector)

Overview

Medium‑voltage transformer bushings serve as the critical insulation and conductive interface that allows live conductors to pass through the grounded metal tank of oil‑immersed power transformers. Among various ANSI‑compliant insulating components, the 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector) is a widely‑adopted apparatus engineered for North‑American standard distribution transformers. It integrates a tension‑type bushing connector, specially built to withstand mechanical pulling forces from connected cables while maintaining reliable electrical continuity.

Distribution networks operating under ANSI standards face complex operating stresses: power‑frequency overvoltage, lightning impulse surges, continuous load current, short‑circuit faults, plus outdoor environmental hazards such as humidity, dust, salt contamination and temperature cycling. Ordinary bushing connectors may suffer loosening or poor contact under persistent cable tensile loads. The tension‑type bushing connector solves this pain point by providing stable mechanical clamping, preventing contact degradation caused by cable pull force.

Poorly‑specified ANSI bushings will trigger partial discharge, overheating at connection points, surface flash‑over or even catastrophic transformer failure. For transformer OEMs, electrical design engineers and component purchasers, thorough understanding of definition, performance strengths, technical parameters, application scope and installation rules of 15‑34KV/55A ANSI Bushing with tension‑type bushing connector is essential for correct component selection.

What is 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector)

The 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector) is an ANSI‑standard medium‑voltage bushing for oil‑immersed distribution transformers. Its rated voltage range covers 15kV up to 34kV, with continuous rated current of 55A. The core feature lies in the equipped tension‑type bushing connector, also called tension terminal, which can bear mechanical tension load from external cables.

This bushing assembly mainly consists of porcelain shed‑type insulating housing, internal conductive rod, tension‑type bushing connector on the top end, earthing terminal, protective cover and lower‑part DT terminal. The porcelain umbrella‑shape shed structure improves creepage distance, enhancing outdoor pollution‑resistance performance. The protective cover can shield the top connector from ultraviolet ray, rain and dust. The earthing terminal is reserved for grounding connection requirements, while the DT terminal at the bottom realizes connection inside transformer tank.

This series follows ANSI power equipment standards. Multiple umbrella‑shed configurations are available, ranging from 4‑umbrella up to 11‑umbrella versions to adapt to different creepage distance requirements for ordinary, polluted or high‑altitude working sites. It is widely matched with pad‑mounted transformers, pole‑mounted distribution transformers and substation auxiliary transformers applied in North‑American style power grids.

Core Advantages of 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector)

Tension‑type bushing connector for anti‑pull cable connection

The built‑in tension‑type bushing connector can sustain mechanical pulling force of connected cables. It avoids contact loosening, displacement and local overheating caused by cable tension, delivering stable electrical connection for field outdoor installation scenarios.

ANSI Standard Compliance

Designed and dimensioned in accordance with ANSI requirements for medium‑voltage transformer bushings. It can be directly interchanged with mainstream ANSI‑series bushing products, convenient for new transformer manufacturing and field replacement maintenance.

Optimized Porcelain Umbrella‑Shed Insulation Design

Optional 4‑shed to 11‑shed porcelain housing delivers varied creepage distance and arcing distance. Longer creepage distance options are available for heavy‑pollution coastal, industrial and high‑altitude locations, effectively reducing flash‑over failure risks.

Complete Matching Auxiliary Structures

Equipped with protective cover, dedicated earthing terminal and DT lower terminal. The protective cover protects top connector against outdoor harsh environment; earthing terminal fulfils safety grounding demands; DT terminal ensures steady connection with transformer internal winding conductors.

Stable Thermal and Electrical Performance

Capable of enduring rated power‑frequency voltage, lightning impulse voltage, continuous 55A operating current and short‑circuit current impacts. Excellent insulation coordination reduces partial‑discharge risks under long‑term medium‑voltage service conditions.

Flexible Dimension & Configuration Options

Multiple dimensional variants cover different H, h1, d1, d2 dimensional parameters. Tank opening dimensions are standardized for transformer tank‑cover mounting. Custom modifications are supported, such as adding DT terminals on bushing lower end according to project requirements.

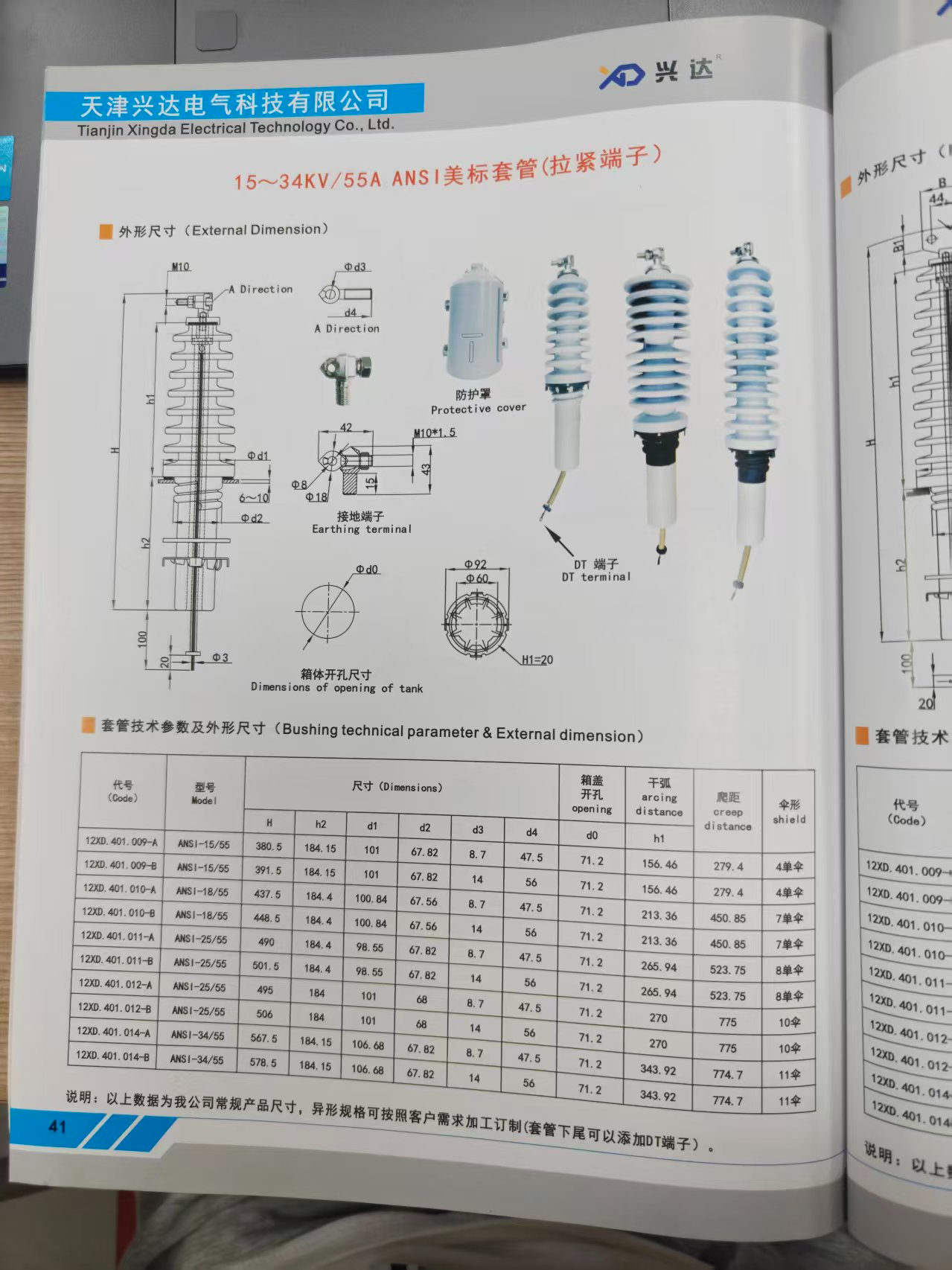

General Technical Specifications

Industry‑general technical parameters for 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector). All dimension units: millimeter (mm)

Main Application Scenarios

Pad‑Mounted Distribution Transformers

Pad‑mount transformers for North‑American power networks are one major application. The tension‑type bushing connector copes with cable pulling stress in outdoor cabinet installation, providing secure cable termination.

Pole‑Mounted Distribution Transformers

Pole‑mount transformers installed on utility poles suffer cable mechanical tension caused by wind sway. The tension‑type bushing connector effectively resists cable pull force, avoiding loose connection failures.

New‑Energy Auxiliary Step‑down Transformers

Distributed photovoltaic and wind‑power projects adopting ANSI‑standard transformers widely select this bushing. It handles outdoor variable weather conditions for power conversion equipment.

Transformer Spare‑part Replacement & Maintenance

As ANSI‑compliant interchangeable component, this bushing is used for on‑site replacement of aged or damaged medium‑voltage bushings in existing distribution power grids.

Key Selection Guidelines

When specifying 15‑34KV/55A ANSI Bushing (Tension‑type bushing connector), engineering purchasers need to confirm these key parameters:

1. Rated Voltage: Match system voltage class:15kV,18kV,25kV or 34kV according to actual grid operating conditions.
2. Creepage & Arcing Distance: Select 4‑shed to 11‑shed models. Pick higher creepage distance versions for coastal salt‑fog, industrial pollution or high‑altitude sites.
3. Tension‑type bushing connector requirement: Confirm tension‑type connector is required for scenarios with cable mechanical pulling loads.
4. Installation Dimensions: Verify overall height H, h1, h2, diameter d1/d2/d3/d4 and tank opening dimension d0, ensure compatibility with transformer tank cover cut‑out.
5. Auxiliary structure requirements: Confirm requirements for protective cover, earthing terminal and whether DT terminal modification on bushing lower end is needed.
6. Environmental condition: For high altitude, humid, corrosive atmosphere, upgrade to higher creepage shed configuration to offset environmental insulation performance degradation.

Installation & Operation Recommendations

1. Check bushing appearance before installation: Inspect porcelain housing without cracks or chipping; verify tension‑type bushing connector thread and contact surface without damage; check earthing terminal and DT terminal structure integrity.
2. Install sealing gasket between bushing flange and transformer tank cover. Tighten mounting bolts evenly in cross‑sequence to prevent transformer oil leakage.
3. Connect external cables onto tension‑type bushing connector. Apply correct torque value for fastening, avoid over‑torque damaging connector thread; ensure cables are properly relieved so excessive pulling force will not directly transfer onto bushing connector.
4. Mount the protective cover after top‑end cable connection completion, to shield connector assembly from sunlight, rain and airborne pollutants.
5. Complete earthing connection via earthing terminal following local electrical safety codes.
6. After transformer oil filling, carry out insulation and partial‑discharge test before energized operation. Regular visual inspection shall be arranged in service, checking connector tightening status, porcelain surface contamination and any oil‑leakage signs.

Common Potential Risks & Mitigation

Connection overheating at tension‑type bushing connector

Causes: insufficient fastening torque, excessive cable pulling force, dirty contact surface. Mitigation: Follow specified torque during installation; adopt cable strain relief to isolate pull load; clean contact surfaces before assembly; perform periodic tightening inspection.

Porcelain surface flash‑over

Causes: insufficient creepage distance for polluted environment, heavy surface dirt accumulation. Mitigation: Select higher‑shed‑count bushing for contaminated sites; schedule regular surface cleaning maintenance.

Oil leakage at mounting flange

Causes: gasket aging, uneven bolt tightening, flange surface defect. Mitigation: Use qualified sealing gaskets; tighten bolts with cross‑sequence uniform torque; inspect flange flatness before mounting.

Mechanical damage to tension‑type bushing connector

Causes: excessive cable tensile load, violent impact during transportation and installation. Mitigation: Implement cable strain relief design; protect bushing components against mechanical impact in handling.

Conclusion

15‑34KV/55A ANSI Bushing (Tension‑type bushing connector) is a vital ANSI‑standard medium‑voltage insulating component for oil‑immersed distribution transformers. Its most prominent feature is the tension‑type bushing connector, which resists cable mechanical tension and maintains stable connection performance for outdoor installation. With multiple umbrella‑shed configurations, standardized installation dimensions and complete auxiliary accessories, it fits pad‑mounted, pole‑mounted and new‑energy auxiliary transformers widely used in ANSI‑style power grids.

Correct model selection based on system voltage, pollution grade and mechanical cable‑pull condition, together with standardized installation and periodic inspection, are critical prerequisites for long‑term safe operation. As North‑American‑standard transformer export business continues expanding, 15‑34KV/55A ANSI Bushing with tension‑type bushing connector keeps occupying irreplaceable market position for medium‑voltage distribution transformer projects.
