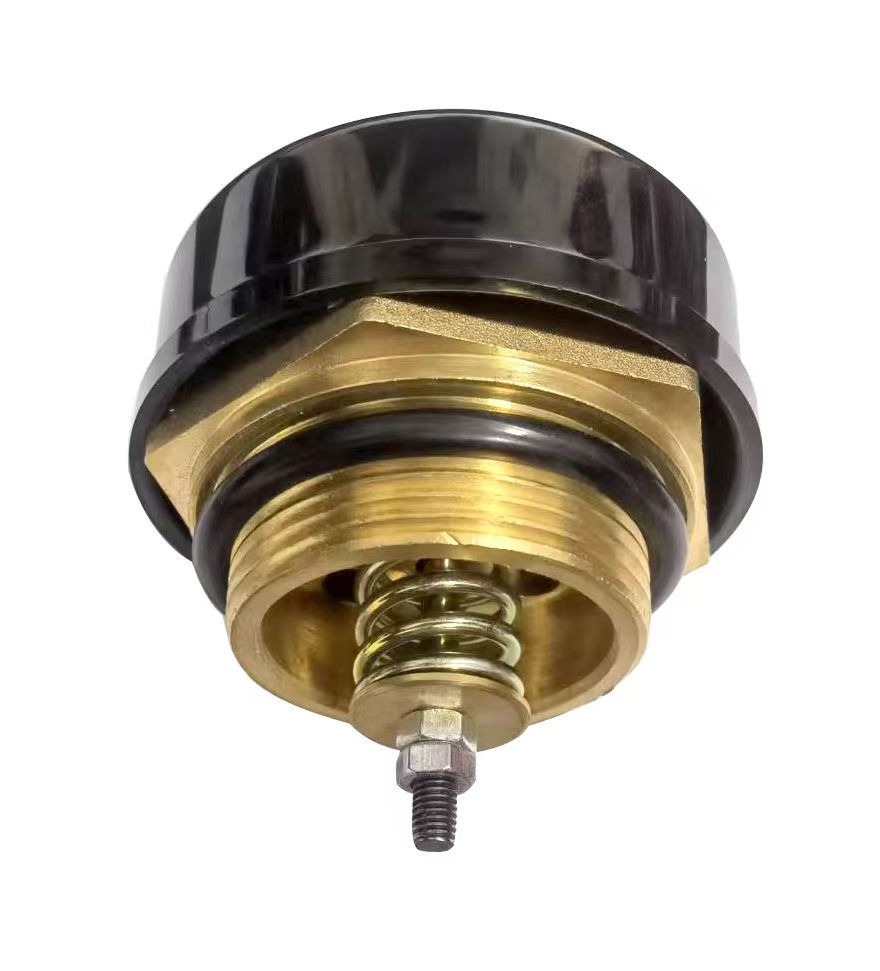

Pressure Pelief Valve

A pressure relief valve (also known as a pressure safety valve or relief valve) for transformers is designed to release pressure when the internal pressure of the transformer exceeds safe limits, preventing equipment damage and accidents. The pressure range of the relief valve depends on the specific design and application environment of the transformer.

Common Pressure Ranges for Pressure Relief Valves:

Small Distribution Transformers: Typically range from 50 kPa (0.5 bar) to 200 kPa (2 bar).

Medium Transformers: Typically range from 200 kPa (2 bar) to 400 kPa (4 bar).

Large Power Transformers: The pressure range may be higher, generally between 400 kPa (4 bar) and 700 kPa (7 bar).

Factors to Consider When Choosing a Pressure Relief Valve:

1. Type and Capacity of the Transformer: Different types and capacities of transformers have different internal pressure requirements. Selecting the appropriate pressure relief valve ensures effective operation.

2. Operating Environment: Consider the environmental conditions where the transformer is installed, such as temperature and humidity, as these factors may affect the performance of the pressure relief valve.

3. Safety Standards and Regulations: Ensure that the selected pressure relief valve meets relevant safety standards and industry regulations to guarantee the safe operation of the transformer.Maintenance and Inspection of Pressure Relief Valves:

1. Regular Testing: Periodically test the operation of the pressure relief valve to ensure it can open and close normally within the set pressure range.

2. Cleaning and Maintenance: Keep the valve clean to prevent dust and debris from affecting its performance.

3. Repair and Replacement: If the valve is found to be damaged or not functioning properly, promptly repair or replace it to ensure the safety of the transformer.

Pressure relief valves are a crucial component of the transformer protection system. Proper selection and maintenance of the pressure relief valve can effectively prevent failures and accidents caused by excessive internal pressure in the transformer.
