XDL (F) series oil level gauge

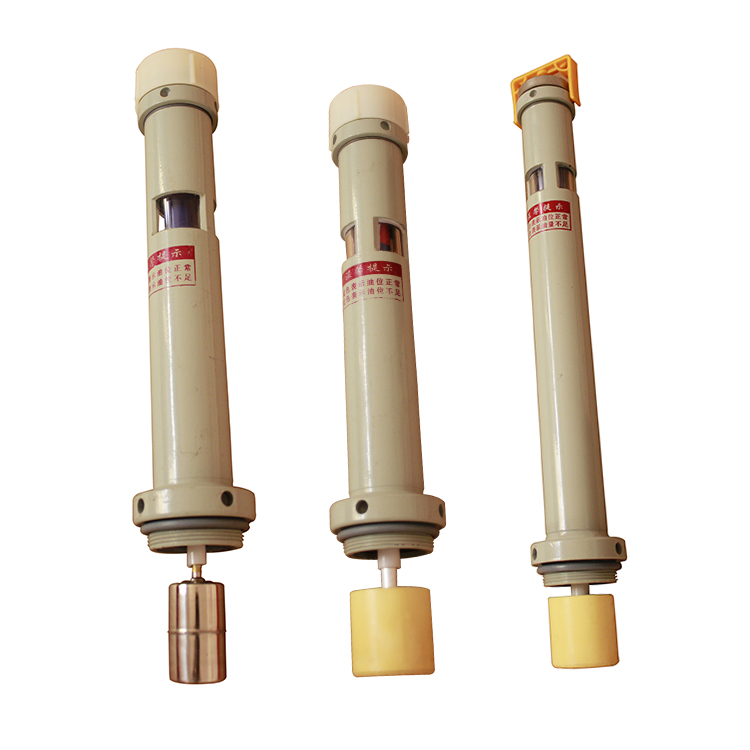

The XDL (F) series oil level gauge is a specialized product for fully sealed transformers. This product is made of high-quality seamless steel pipes or alloy aluminum, with an appearance of electrostatic spraying, reliable sealing, simple operation, convenient installation, shortened working hours, and multiple functions. It can be used for connecting oil injection pipes.

This series of products is mainly suitable for oil immersed fully sealed transformers, installed on the upper part of the transformer oil tank cover to display the oil level inside the tank. When a blue mark appears in the upper window of the oil level gauge, it indicates that the oil level is normal and above the tank cover; When a red mark appears, it indicates an abnormal oil level, with the oil level below the box cover. It is necessary to add oil appropriately. The upper thread of this product can be used as an oil injection edge pipe, pressure relief valve, vacuum pumping and other interfaces.

Our company adopts threaded and flange connections to ensure reasonable compression of the sealing rubber ring, while effectively preventing ultraviolet radiation, resulting in a longer service life of the rubber ring. The oil level observation adopts a 360 ° no dead angle design. The blue color indicates that the oil level in the tank is normal, while the red color indicates that the oil level in the tank has decreased. The installation method of the transformer oil level gauge should be added in a timely manner:

1. The oil level gauge is installed on the upper part of the box, and the threaded base is opened on the transformer box cover Ф 60 holes, seal and weld the threaded base with the box cover, install the sealing gasket, and tighten it directly.

2. Flange base oil level gauge, with sealing gasket installed, use 4-M10 × 20 bolts, tighten and secure directly.
