Insulating Crepe Paper
Insulating Crepe Paper

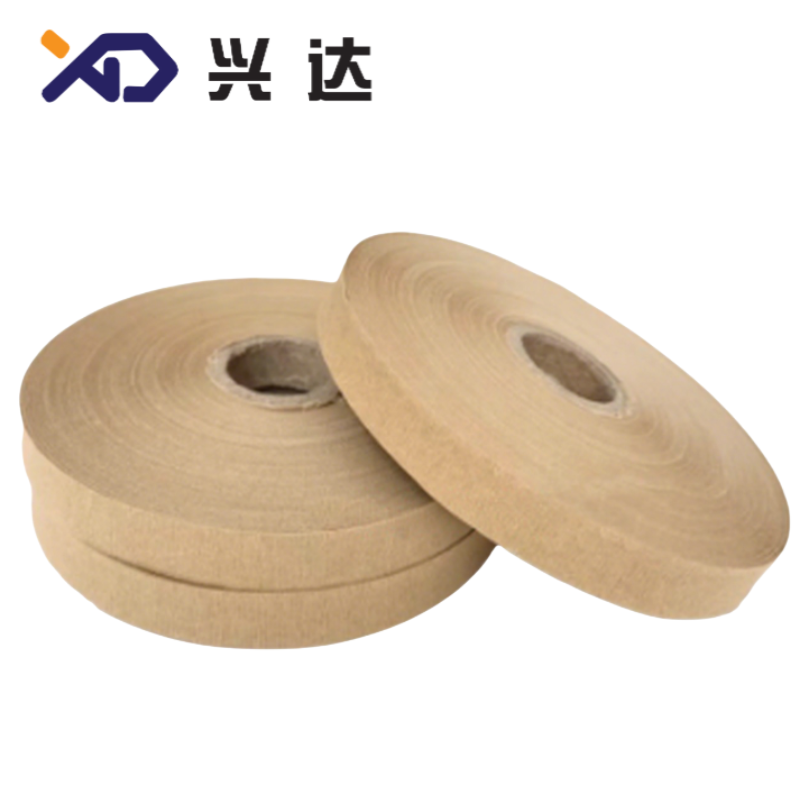

绝缘皱纹纸Insulating Crepe Paper
说明：
皱纹纸在变压器中用作绝缘材料，用于覆盖铜和铝导线（需要柔韧性的地方）。
Description
Crepe Paper is used as Insulation material in Transformers to cover Copper and Aluminium conductors where flexibility is required.
规范：
厚度范围：0.20mm-0.65mm
标准卷宽：800mm
Specification:
Thickness range: 0.20mm - 0.65mm
Standard reel width: 800mm
Technical Parameter技术参数
Item项目 | Unit单位 | Crepepaper（basepaper） 皱纹纸（原纸） | ||||
0.05mm | 0.075mm | 0.08mm | 0.13mm | |||
Thickness 厚度 | mm | 0.35±0.05 | 0.48±0.08 | 0.80.60±0.08 | 0.80±0.10 | |
Ash content含灰量 | % | ≤ 0.7 | ≤ 0.7 | ≤ 1.0 | ≤ 1.0 | |
Moisture 含水量 | % | 6.0-9.0 | ||||
Diethyl ether乙醚 | % | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
Water extract PH value 水提取物PH值 | 6.0-8.0 | |||||
Polluted oil | % | ≤0.1 | ||||
Tensile strength 抗张强度 | MD | KN/M | ≥1.96 | ≥2.6 | ≥3.0 | ≥3.3 |
TD | KN/M | ≥1.3 | ≥1.96 | ≥2.3 | ≥2.7 | |
Wrinkling 起皱度 | % | ≥ 50 | ||||
Breakdown voltage耐电压 | V/layer V/层 | ≥950 | ≥1000 | ≥1000 | ≥1000 | |
Electric conductivity导电性 | ms/m | ≤8.0 | ≤8.0 | ≤9.0 | ≤10.0 | |
特性：
良好的介电强度
与绝缘液体有极好的相容性
无导电颗粒
Characters
Good dielectric strength
Excellent compatibility with insulating liquids
Free from conductive particles
应用：
标准皱纹纸：电力和配电变压器、纸绝缘导线、套管、电力电缆
半导电皱纹纸：电流互感器（CT）、电压互感器（VT）、电压互感器（PT）、电力电缆
Application
Standard Crepe Paper: Power & Distribution Transformers, Paper Insulated Conductors, Bushings, Power Cables
Semi-conductive Crepe Paper: Current Transformer (CT), Voltage Transformer (VT), Potential Transformer (PT), Power Cables
