High Grade And Quality Low Iron Loss With Good Magnetic Induction Standard Iron Core

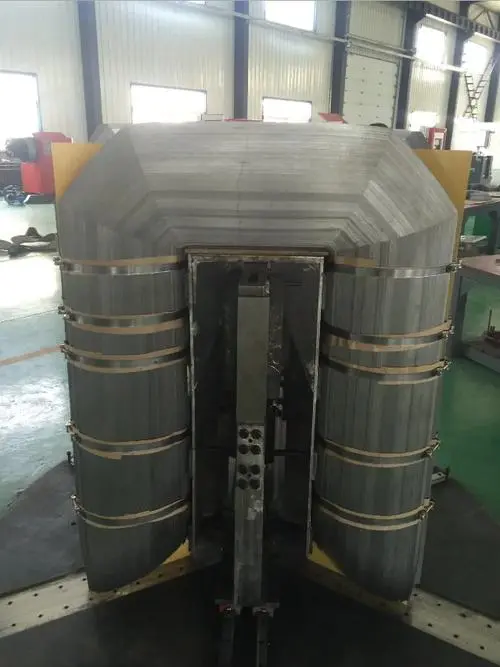

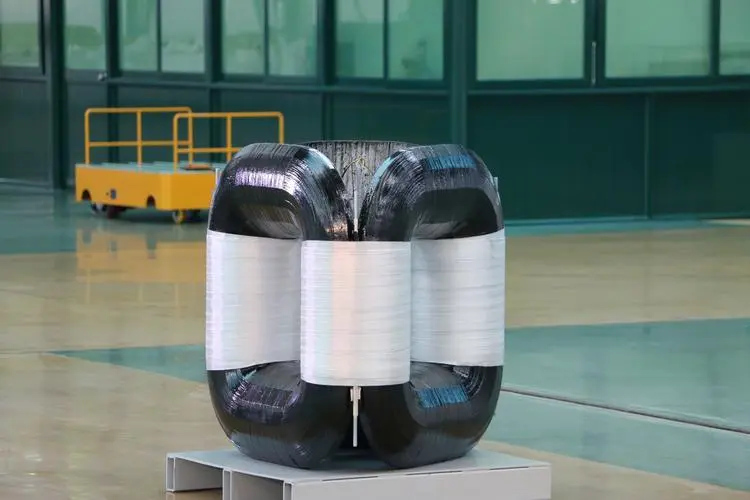

     Transformer core, the core is the main part of the magnetic circuit in the transformer. It is usually made of hot-rolled or cold-rolled silicon steel sheets with a high silicon content and an insulating varnish on the surface. The iron core and the coil that winds around it form a complete electromagnetic induction system. The amount of power transmitted by the power transformer depends on the material and cross-sectional area of the core.

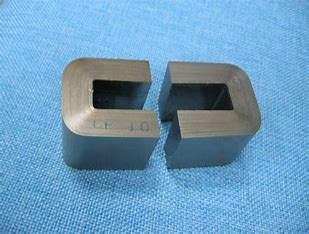

     The greater the power of the transformer. Coils can be installed on both sides of the core, so the number of turns of the transformer can be distributed on the two wire packs, so that the average turn length of each wire pack is shorter, and the copper consumption of the coil is reduced. In addition, if the two coils that require symmetry are wound around the two wire wraps, the effect of complete symmetry can be achieved. A set of silicon steel sheets composed of four C-type silicon steel sheets is called ED type silicon steel sheets.The transformer made of ED type silicon steel sheets is flat and wide, under the same power conditions, the ED type transformer is shorter than the CD-type transformer, the width is larger, and because the coil is installed in the middle of the silicon steel sheet, there is an external magnetic circuit, so the magnetic flux leakage is small, and the overall interference is small.
