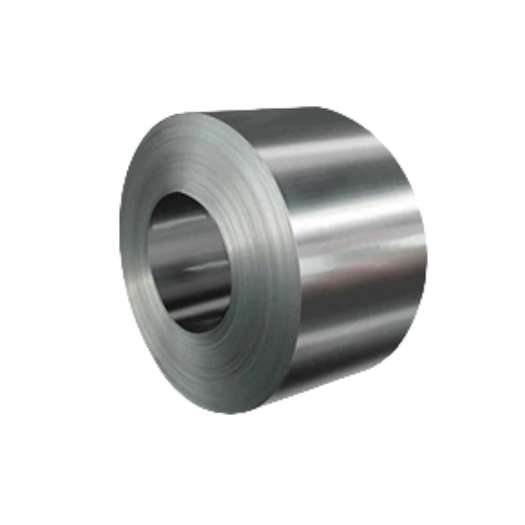

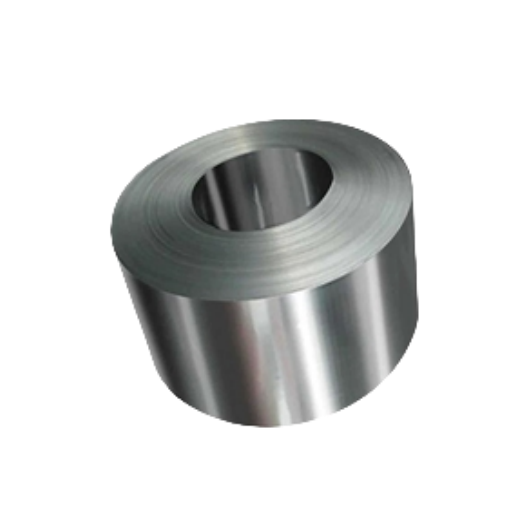

CRGO Electrical Silicon Steel

Introduction to Cold Rolled Grain Oriented Silicon Steel

Cold rolled grain oriented silicon steel, often referred to as CRGO steel, is a specialized electrical steel used in the manufacture of transformers, motors, and generators. This type of steel is designed to exhibit superior magnetic properties, particularly in terms of magnetic flux density and low core losses, making it ideal for applications where efficient energy conversion is essential.

Key Features of Cold Rolled Grain Oriented Silicon Steel:

1. Grain Orientation:The term "grain oriented" refers to the directional arrangement of the crystal grains within the steel. During the manufacturing process, the steel is carefully cold-rolled in a way that aligns the crystal grains along the rolling direction, resulting in a preferred magnetic axis. This grain orientation enhances the steel's magnetic properties, leading to lower core losses and higher magnetic permeability.

2. High Magnetic Flux Density: CRGO steel exhibits a high magnetic flux density, allowing transformers and other electrical devices to operate more efficiently with reduced size and weight. The high magnetic flux density is attributed to the grain-oriented structure of the steel, which facilitates the concentration and direction of magnetic flux.

3. Low Core Losses:One of the most significant advantages of CRGO steel is its low core losses, particularly hysteresis and eddy current losses. The grain-oriented structure minimizes the energy dissipated as heat during the magnetization and demagnetization cycles, resulting in higher energy efficiency and reduced heating in electrical devices.

4. High Magnetic Permeability:Cold rolled grain oriented silicon steel possesses excellent magnetic permeability, allowing magnetic fields to penetrate the material with minimal resistance. This property is crucial for efficient energy transfer and magnetic circuit performance in transformers and other electromagnetic devices.

5. Silicon Content: CRGO steel contains a controlled amount of silicon (typically around 3-4.5%), which plays a key role in enhancing magnetic properties and reducing core losses. The silicon helps to stabilize the crystal structure and minimize magnetic domain boundaries, contributing to improved magnetic performance.

6. Applications:Cold rolled grain oriented silicon steel is primarily used in the production of electrical transformers, where it forms the core laminations. It is also employed in rotating machines such as motors and generators, where high magnetic performance is essential for optimal efficiency.

In summary, cold rolled grain oriented silicon steel is a specialized material engineered to exhibit superior magnetic properties for electrical applications. Its unique grain orientation, combined with controlled silicon content, results in low core losses, high magnetic flux density, and excellent energy conversion efficiency, making it indispensable in modern electrical engineering and power systems.
