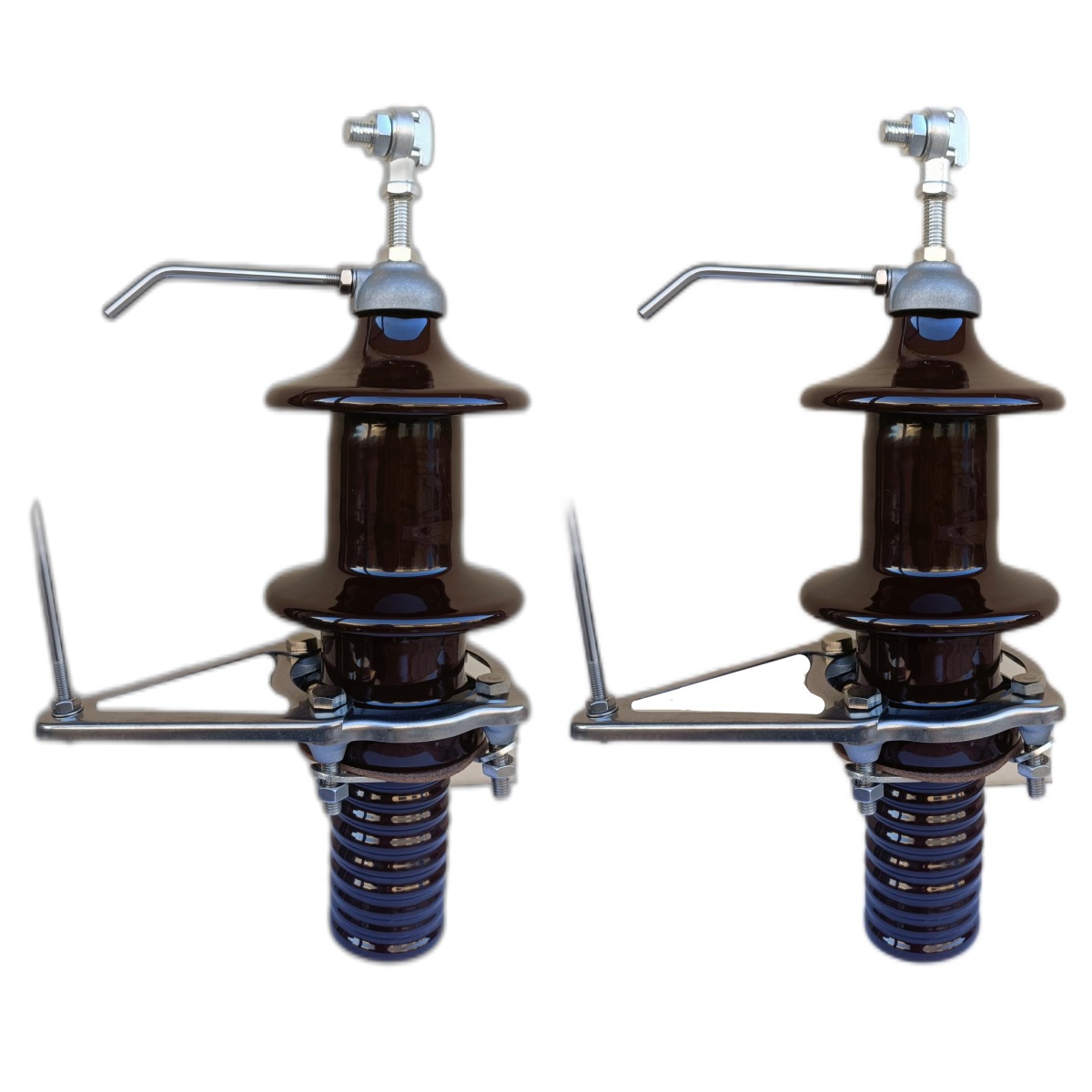

12-36KV/2250-630A DIN Cable-Threaded Transformer Bushing

The transformer bushing is an outlet device for the high and low pressure leads inside the transformer to the outside of the fuel tank, and has the specified electrical strength and sufficient mechanical strength. The voltage level of the coil connected to the casing determines the insulation structure of the casing. The operating current of the casing determines the cross section of the conducting part and the structure of the connector

Conditions and performance:

1. Ambient temperature: -45 degrees to +40 degrees.

2. Altitude: ordinary type casing does not exceed 1000 meters, enhanced and anti-pollution type casing does not exceed 2500 meters.

3. Ordinary type casing is suitable for light pollution areas, anti-pollution type casing is suitable for heavy pollution areas.

4. Installation Angle: vertical or inclined Angle does not exceed 30 degrees.
