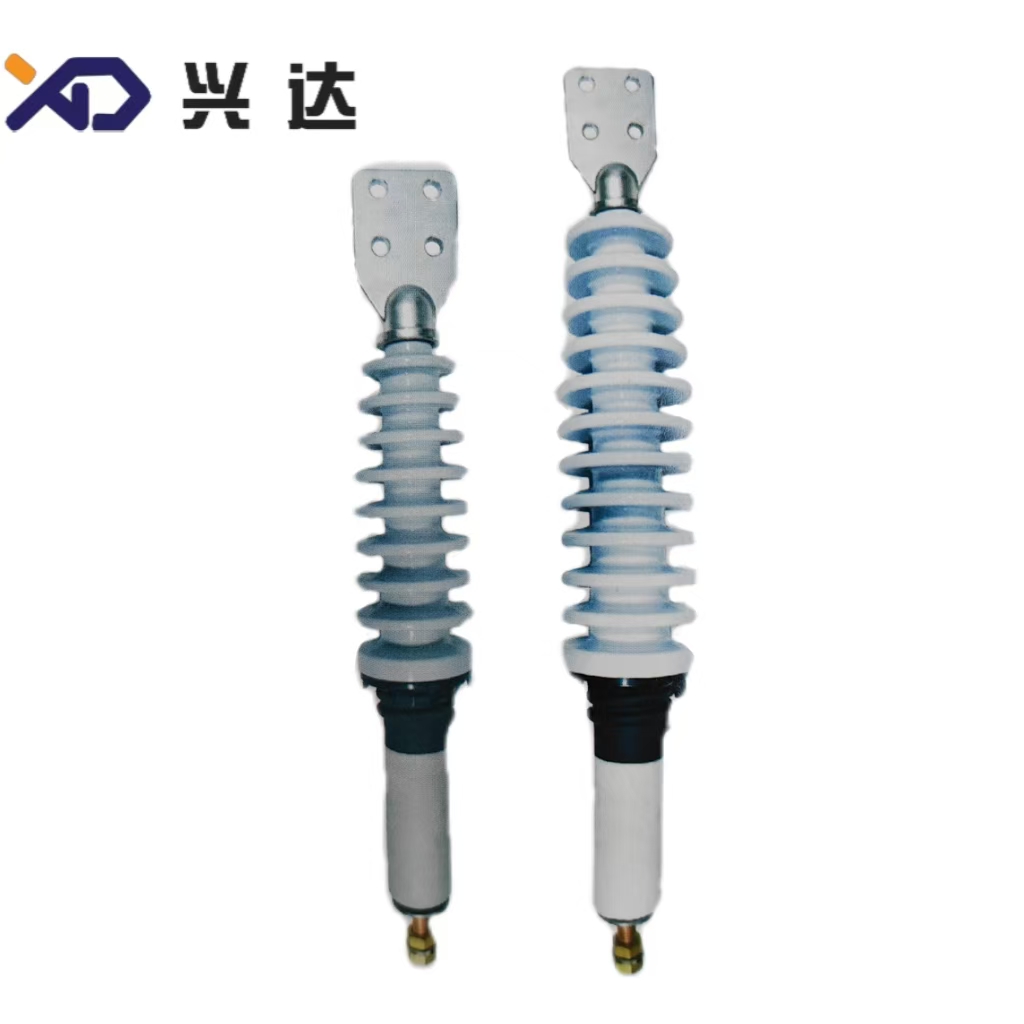

15‑34KV / 417‑600A ANSI Bushing (Shank‑type shovel‑face)

Overview

An ANSI shank‑type shovel‑face bushing is a critical insulating component specially built for North‑American‑standard oil‑immersed distribution and power transformers. The shovel‑face opening defines the unique top mounting geometry, designed for shank‑through conductor assembly, which differentiates it from cable‑through and conventional flange‑mount transformer bushings. Rated for system voltages from 15 kV up to 34 kV and current ratings spanning 417 A to 600 A, this bushing family acts as the transition interface between energized internal transformer shank conductors and external overhead lines or busbar connections. It delivers reliable dielectric insulation as well as solid mechanical support for the live shank conductor passing through the earthed transformer tank.

Medium‑voltage transformer installations following ANSI standards face combined stresses: power‑frequency voltage stress, lightning impulse surges, short‑circuit current shocks, mechanical vibration from transformer operation, and outdoor environmental contamination including salt fog, industrial dust and high humidity. Improperly‑specified bushings become the weak point of transformer systems, leading to partial discharge, insulation degradation, unexpected transformer shutdown and costly on‑site repairs. The 15‑34 kV /417‑600 A shank‑type shovel‑face ANSI bushing is engineered to mitigate these risks, strictly aligned with ANSI transformer bushing specifications for distribution transformer applications.

The shank‑type shovel‑face structure features an angled shovel‑face top opening for shank conductor installation. This mechanical design simplifies field assembly of shank‑style conductors, provides stable bolt‑on connection space, and maintains required electrical clearances over the full service life. Mostly applied on pad‑mounted transformers, pole‑mounted distribution transformers and small‑size substation transformers, this bushing series is widely adopted across North‑American and export‑oriented power projects.

What is Shank‑type Shovel‑face ANSI Bushing

The term shank‑type means the live metal shank conductor runs straight through the inner bore of the bushing unit, instead of cable insertion used on cable‑through bushings. Shovel‑face opening refers to the special angled mounting face at the upper terminal end, a well‑recognized mechanical feature within ANSI distribution transformer component drawings.

This bushing unit consists of composite or porcelain insulating shed assembly, aluminum clamping flange, shovel‑face metal terminal structure, inner shank conductor passage, and protective cover accessories. The tank opening dimension matches standard ANSI transformer tank cut‑out requirements, allowing direct fitting onto oil‑filled transformer tanks.

Key rated parameters cover voltage class 15 kV, 18 kV, 25 kV, 34 kV, with continuous current ratings 417 A and 600 A. Every unit must satisfy ANSI‑specified power‑frequency withstand voltage, lightning impulse withstand level, short‑time short‑circuit current capability, and creepage distance requirements for polluted outdoor service environments.

Core Benefits of 15‑34KV /417‑600A Shank‑type Shovel‑face ANSI Bushing

1. ANSI‑compliant mechanical geometryShovel‑face opening and shank‑through inner structure follow standard ANSI dimensional requirements. It fits standard transformer tank opening, aluminum clamp and protective cover accessories, making part replacement and retrofit straightforward for existing ANSI‑design transformers.
2. Optimized outdoor pollution resistanceMulti‑shed insulation profile provides sufficient creepage distance. Different shed quantities are configured for 15‑34 kV variants, performing steadily under coastal salt fog, industrial dust and high‑humidity outdoor operating conditions.
3. Robust shank‑type conduction performanceInternal shank‑through structure supports continuous operating current up to 600 A. Proper thermal design avoids excessive temperature rise under full‑load operation, reducing thermal‑caused insulation aging.
4. Convenient assembly and maintenanceShovel‑face terminal layout simplifies external busbar connection. Matching aluminum clamp and protective cover accessories protect terminals against weather damage during long‑term outdoor running. No complex internal oil‑filling procedure is required for installation.
5. Wide voltage‑current coverageCovers mainstream medium‑voltage classes 15 kV, 18 kV, 25 kV, 34 kV together with 417 A and 600 A current grades. Engineers can select proper models for new‑build transformers or field replacement projects.

Technical Specification Table: 15‑34KV /417‑600A ANSI Shank‑type Shovel‑face Bushing

Note: Dimensions shown are standard industry reference values. Custom dimensions are available upon engineering request, including adjustable h3 height for special transformer tank designs.

Typical Application Scenarios

• Pad‑mounted oil‑immersed distribution transformers following ANSI standards
• Pole‑mounted medium‑voltage power transformers for public utility grid
• Industrial plant auxiliary transformers for North‑American‑style power systems
• Transformer retrofit and spare‑part replacement projects for existing ANSI‑type equipment
• Renewable energy step‑up transformers for wind and solar power facilities adopting ANSI specifications

In all these applications, the shank‑type shovel‑face bushing forms the critical boundary between transformer internal windings and external power networks. Engineers must match voltage class, current rating, creepage distance and tank opening dimension according to site altitude, pollution level and transformer mechanical layout.

Key Selection Criteria

1. Voltage and current rating: Confirm system rated voltage (15 kV /18 kV /25 kV /34 kV) and continuous operating current (417 A or 600 A) to match transformer nameplate data.
2. Creepage and shed quantity: Select adequate creepage distance corresponding to site environmental pollution grade; coastal salt‑polluted locations require higher creepage values.
3. Tank opening dimension: Verify transformer tank cut‑out size, mounting hole layout to fit the aluminum clamp of shovel‑face bushing.
4. Altitude derating: For installation above 1000 m altitude, additional insulation derating calculation shall be performed as per ANSI guidelines.
5. Mechanical interface: Confirm shank conductor diameter, shovel‑face bolt layout, compatibility with protective cover and external connection hardware.

Installation & Operational Notes

• Check the insulation surface for cracks, scratches or mechanical damage before mounting. Surface defects may trigger partial discharge risk during service.
• Mount the aluminum clamp correctly onto the transformer tank opening; follow recommended torque value for mounting bolts. Excessive torque may cause insulation body cracking.
• Install matching protective cover on shovel‑face terminal to prevent UV ageing, bird contact and outdoor contamination accumulation.
• Make sure shank conductor assembly aligns with the bushing inner bore; avoid forced mechanical stress on the bushing body.
• After installation, perform required dielectric tests including power‑frequency withstand test and partial‑discharge measurement before energizing the transformer.

Routine Maintenance Guidance

• Carry out periodic visual inspection: check insulation sheds for dirt accumulation, surface cracks, chipping and aging traces.
• Inspect shovel‑face terminal connection points for overheating signs; thermal monitoring is recommended for heavily‑loaded transformers.
• Clean the outer insulating surface when heavy dirt builds up; use non‑abrasive compatible cleaning materials to avoid damaging shed surface.
• Check protective cover condition; replace damaged protective covers in time.
• Once cracks or insulation degradation are detected, replace the complete bushing unit immediately to prevent unexpected transformer failure.

Conclusion

15‑34 kV /417‑600 A ANSI shank‑type shovel‑face bushing is a purpose‑built medium‑voltage insulating component for ANSI‑standard distribution transformers. Its distinctive shovel‑face shank‑through mechanical design delivers standardized mounting interface, sufficient creepage performance for outdoor polluted environments, and stable current‑carrying capacity for 417 A‑600 A working conditions. Correct model selection, standardized installation and simple periodic maintenance support long‑term transformer operational reliability for utility, industrial and renewable‑energy projects complying with North‑American power‑equipment standards.
