Premium 1 3kv 250 3150A Brass Flag EN LV Transformer Porcelain Bushing Insulator for Industrial Power Transformers

EN LV porcelain bushing is one essential insulated pass‑through fitting specially manufactured following European EN industrial standards for low‑voltage transformer equipment. Also named transformer bushing insulator, this hardware creates safe insulated channels for conductive brass terminals to go through the sealed transformer tank wall. The standard‑compliant EN bushing separates live conductive components from the grounded metal shell, stopping electric leakage, surface flash‑over and short‑circuit accidents inside power distribution transformers. Widely adopted by European power equipment markets, the EN‑series bushing covers broad current specifications from 250A up to 3150A, serving as non‑replaceable core spare parts for all types of low‑voltage transformers. Search terms such as EN bushing, LV transformer porcelain insulator, brass flag transformer bushing keep high monthly search volume among transformer component buyers, transformer maintenance crews and power station procurement teams all over the globe.

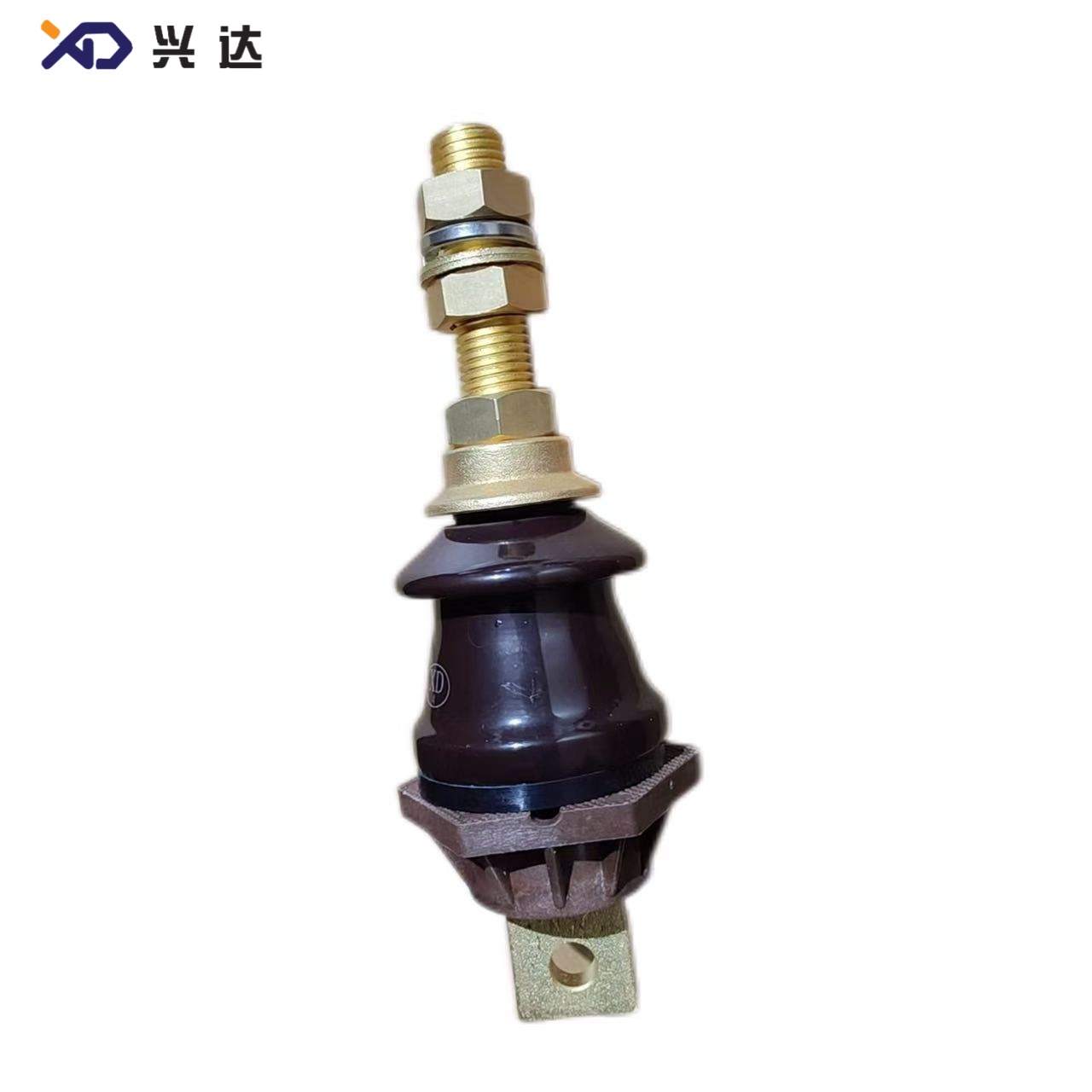

To clearly define the EN low‑voltage porcelain bushing, it is an integrated assembly made up of high‑strength glazed porcelain insulator body, brass flag or brass‑stem conductive terminal, fasten screw fittings and sealed buffer gaskets. Every structural part matches EN safety requirements for electrical insulating accessories. Multiple standout features support its stable long‑time running performance. First, the high‑density glazed porcelain main body delivers outstanding dielectric strength, strong anti‑pollution capacity and great creepage distance for wet operating surroundings. Second, precision‑processed brass flag terminals hold excellent electrical conductivity, anti‑oxidation property and low contact resistance under heavy‑current loads. Third, flexible dimension options cover varied installation requirements for transformer tank opening sizes, mounting thread standards and overall height parameters.

Major competitive advantages make EN‑type bushings stand out from ordinary transformer insulators. Full EN‑standard certification brings cross‑region compatibility for European power projects. Shock‑resistant porcelain material resists cracks caused by equipment vibration during transformer operation. The waterproof and dust‑proof glazed surface cuts down dirt buildup and pollution flash‑over risks in outdoor substations. Low power loss improves the comprehensive working efficiency of matched transformers, while the easy‑install structure greatly lowers equipment replacement and maintenance spending.

Common application fields spread widely in the power‑supply sector. EN LV porcelain bushings fit well for distribution transformers, industrial‑use power transformers, box‑type substation hardware, generator set transformer accessories and old transformer component replacement work. They adapt to indoor power‑distribution rooms, outdoor exposed transformer stations, damp underground power facilities and heavy‑load industrial power workshops.

Q1 Is the EN LV porcelain bushing long‑lasting and durableA1 Qualified EN‑standard porcelain bushings adopt high‑temperature fired glazed porcelain and anti‑oxidation brass accessories. Under standard running environments, the service life can reach 15 to 25 years. Its anti‑aging, vibration‑proof and weather‑resistant structure slows down material ageing for long‑term transformer operation.

Q2 What daily maintenance work does an EN porcelain bushing requireA2 Carry out regular surface cleaning to clear accumulated dust, industrial pollutants and moisture on the porcelain glaze. Inspect brass flag terminals for oxidation traces and check mounting nuts for loose status every six months. Replace cracked, glazed‑peeling or heavily‑corroded bushings right away to prevent insulation breakdown.

Q3 Can one EN bushing fit multiple kinds of low‑voltage transformersA3 Installation parameters including mounting thread, tank‑opening diameter and overall height decide compatibility. Buyers need to match model specifications according to transformer drawing data. The multi‑size EN bushing series covers most mainstream low‑voltage transformer installation demands.

Q4 What risks will damaged transformer bushings bring to power equipmentA4 Broken porcelain insulators reduce creepage distance, trigger surface flash‑over, electric leakage and transformer short‑circuit faults. Oxidized brass terminals raise contact heat generation, which may burn out connecting wiring and cause unexpected power‑supply shutdown.

Q5 What temperature range suits the operation of EN LV porcelain bushingA5 Standard EN‑series porcelain bushings can steadily run within the temperature range from minus 40℃ to plus 120℃, adapting to cold northern districts, high‑temperature tropical zones and fluctuating outdoor weather conditions.
