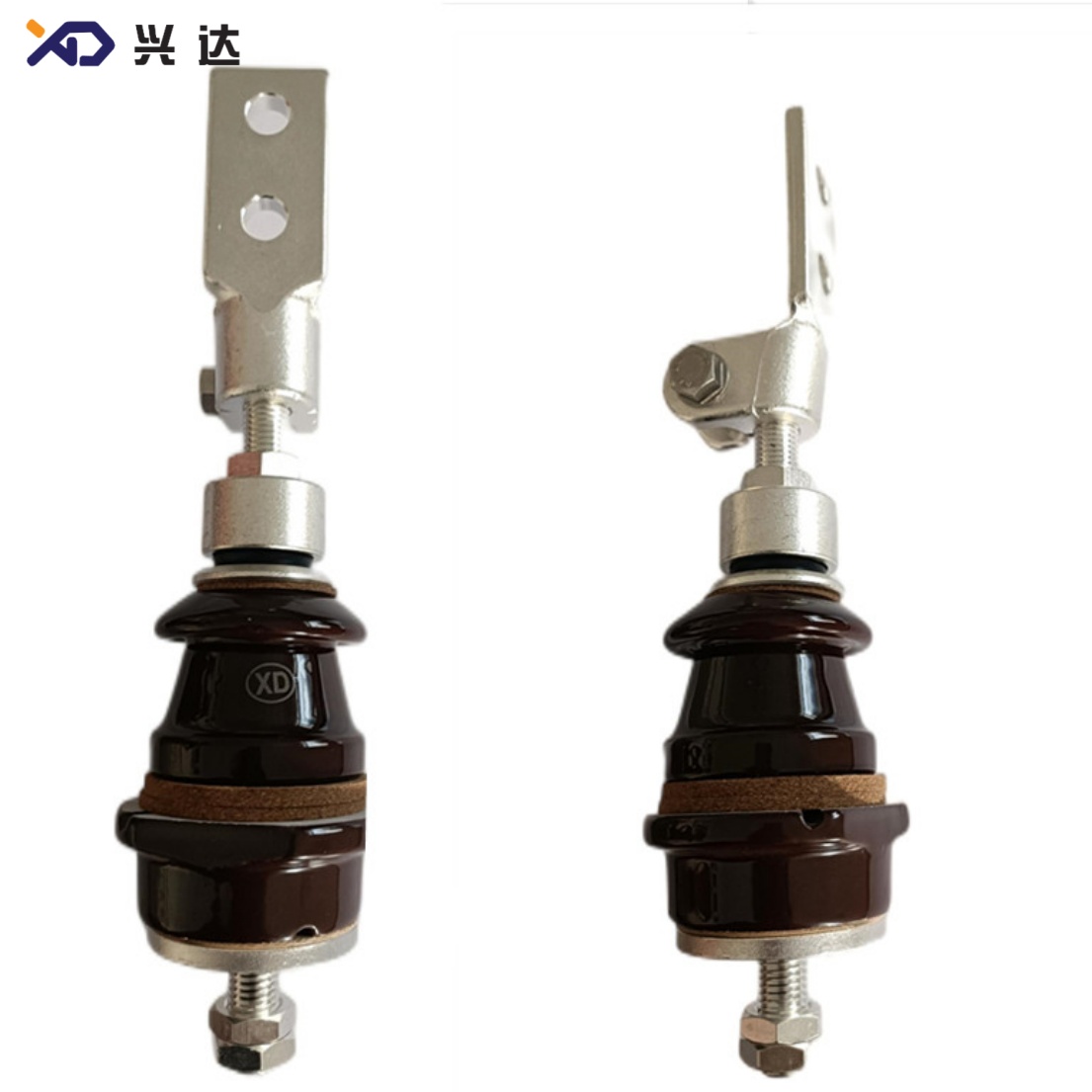

1‑3KV/250‑630A DIN Bushing for Oil‑Immersed Distribution Transformers

1‑3KV / 250‑630A DIN Bushing: Definition, Types, Specifications, Benefits and Application Guide

Overview

A 1‑3KV / 250‑630A DIN bushing is a standard‑compliant high‑voltage insulating component built according to DIN industrial standards, widely deployed for low‑medium voltage oil‑immersed transformers, distribution transformers, reactor tanks and electrical enclosures. This category of DIN‑standard bushing creates a safe insulated passage for live conductive studs to penetrate the earthed metal tank wall, separating high‑potential live parts from grounded equipment housing. It delivers dual core functions: reliable electrical insulation and continuous conductive current transfer.

DIN‑specification transformer bushings are extremely common within European‑style power distribution systems. The 1‑3kV voltage class with 250A‑630A current range covers the most frequently‑used specifications for small‑to‑medium distribution transformers. These units are mostly constructed with porcelain insulating sheds, matched with metal conductive terminals, sealing gaskets and fastening hardware. They are engineered to sustain indoor and outdoor operating conditions, resist humidity, dust and atmospheric contamination, and maintain stable long‑term performance under continuous rated current and short‑time overload conditions.

Unlike custom non‑standard bushings, 1‑3KV / 250‑630A DIN bushing follows unified DIN dimensional standards for mounting thread, tank opening dimensions, creepage distance and mechanical fastening structures. Standardized dimensions enable interchangeability across different equipment manufacturers, greatly simplifying component replacement, maintenance and spare‑part procurement for end‑users, contractors and power system operators.

Core working requirements for 1‑3KV /250‑630A DIN bushing include:

1. Sufficient dielectric strength to withstand rated power‑frequency voltage and temporary overvoltage events

2. Acceptable temperature rise when carrying continuous rated current

3. Good mechanical strength to resist installation torque, vibration and short‑circuit electromagnetic force

4. Reliable sealing performance to stop oil seepage under normal transformer operating pressure

5. Optimized creepage distance for outdoor or polluted‑site deployment

6. Interchangeable mounting dimensions per DIN industry norms




Key Technical Specifications

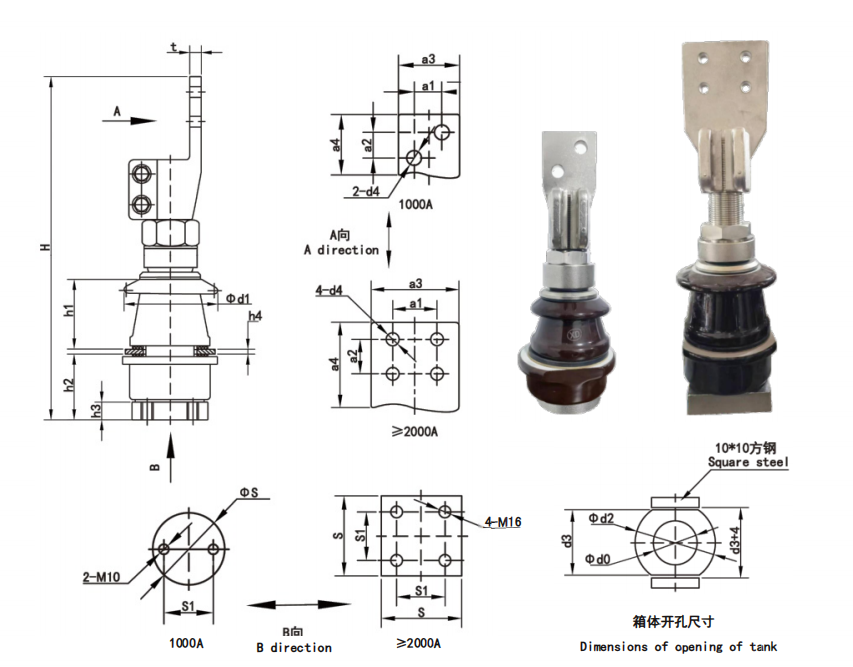

The table below lists general industry‑wide technical and dimensional parameters for 1‑3KV /250‑630A DIN bushing series. All figures represent typical standard‑range values; custom modified dimensions are available for special project requirements.

Note: Above data shows general standard‑series dimensions. Non‑standard modified dimensions can be produced according to special project technical requirements.

Main Material Construction

1‑3KV /250‑630A DIN bushing is assembled from several core material components:

• Porcelain Insulator (Shed Body): High‑grade electrical porcelain forms the main insulating body. It features anti‑pollution single‑shed profiles, excellent surface hydrophobic performance, high mechanical bending and impact resistance, suitable for both indoor and outdoor service environments.

• Conductive Stud / Terminal: High‑conductivity copper alloy material. It transfers load current, provides connection points for internal transformer windings and external cable or busbar connections. Threaded sections follow DIN thread specifications for standard fastener compatibility.

• Sealing Gaskets & Sealing Rings: Oil‑resistant elastic composite materials. They are placed between bushing flange and transformer tank surface, preventing transformer oil leakage and moisture ingress into the transformer tank interior.

• Fastening Hardware: Standard metal nuts, washers and connection fittings complying with DIN fastener standards, used for mounting, compression sealing and external conductor connection.

•


Core Advantages of 1‑3KV /250‑630A DIN Bushing

1. Full DIN Standard InterchangeabilityAll mounting dimensions, thread specifications and tank cut‑out sizes follow DIN industry standards. When maintenance or replacement is required, operators can swap bushings from different manufacturing sources without modifying transformer tank holes or connection structures. This greatly reduces equipment downtime and spare‑part management complexity.

2. Wide Current‑Grade CoverageThe product range covers 250A, 400A and 630A rated current options. It matches most common power ratings for small and medium‑size distribution transformers, covering residential districts, commercial facilities, industrial workshop distribution substations.

3. Robust Outdoor Pollution ResistanceDesigned single‑shed porcelain structure delivers adequate creepage distance. Models with longer creepage specifications can handle coastal, dusty industrial zones and other moderately contaminated operating locations, lowering the risk of surface flash‑over faults.

4. Dependable Oil‑Tight Sealing PerformanceMatching composite sealing gaskets cooperate with flange mounting surfaces. Under correct installation torque, the assembly effectively blocks transformer oil leakage and stops outside humid air from entering the transformer tank, protecting internal winding insulation quality.

5. Strong Mechanical StabilityThe porcelain insulator and metal conductor assembly can withstand installation torque, long‑term operational vibration, plus short‑circuit‑caused electromagnetic forces. It avoids cracking, loosening or structural failure under normal grid fault conditions.

6. Flexible Specification OptionsUsers can select different total height, creepage distance and thread size variants according to transformer design requirements. If standard models cannot satisfy project conditions, non‑standard dimension adjustments are feasible.

Typical Application Scenarios

1‑3KV /250‑630A DIN bushing is widely adopted across global power distribution fields, especially for markets that follow European DIN technical norms. Primary application cases include:

• Oil‑immersed distribution transformers for residential and municipal power grids

• Small‑capacity oil‑filled reactors

• Special‑purpose transformers for industrial manufacturing plants

• Transformer‑mounted auxiliary equipment inside package substations

• Power supply units for mining, agriculture and infrastructure projects

• Retrofit and replacement projects for old DIN‑standard transformers

Installation environment includes indoor substation rooms and outdoor pole‑mounted transformer locations. For high‑salt‑fog coastal sites or heavy‑dust industrial areas, users should select variants with increased creepage distance to enhance anti‑pollution capability.

Installation & Operation Notes

Correct installation directly determines service life of 1‑3KV /250‑630A DIN bushing. Critical operational guidance:

1. Check bushing appearance before installation. Confirm porcelain body has no chipping, cracks or glaze damage; verify sealing components are intact.

2. Clean the transformer tank mounting surface, keep it flat and free of metal burrs or debris.

3. Tighten fastening nuts following recommended torque values. Excessive torque will crack porcelain insulator; insufficient torque will cause oil leakage.

4. After finishing installation, perform oil‑tightness inspection to rule out seepage points.

5. During routine maintenance cycles, inspect surface contamination degree, fastening tightness and oil‑sealing status. Clean porcelain shed surface when heavy dirt accumulates.

6. Avoid strong mechanical impact or collision against porcelain sections during transportation, handling and installation.

Selection Guide for 1‑3KV /250‑630A DIN Bushing

When selecting suitable DIN bushing for projects, evaluate these key parameters in sequence:

1. Confirm rated operating voltage of transformer equipment, choose between 1kV‑class or 3kV‑class bushing variant.

2. Match rated current (250A /400A /630A) according to transformer nominal output current.

3. Verify tank opening diameter, mounting thread specification and overall installation height to fit existing transformer mechanical structure.

4. Evaluate site environmental pollution level. For outdoor, coastal or heavy‑dust locations, select higher creepage distance versions.

5. Confirm shed type and overall dimension limits inside transformer layout space.

6. Confirm whether special non‑standard modifications are required for custom‑designed transformer tanks.

Common Failures & Root Causes

Even though DIN‑standard bushings are proven robust components, improper selection, bad installation or harsh operating environment may trigger typical faults:

1. Oil leakage: Usually caused by uneven mounting surface, damaged sealing gaskets or uneven tightening torque.

2. Porcelain surface flash‑over: Mainly due to accumulated surface dirt; insufficient creepage distance for polluted working location.

3. Porcelain cracking: Result from excessive tightening torque, mechanical collision impact or thermal stress.

4. Overheating at connection terminal: Caused by loose external connection contacts, leading to abnormal temperature rise under load current.

Reasonable product selection, standardized installation and periodic preventive maintenance can effectively minimize above‑mentioned failure risks and extend bushing working lifespan.

Conclusion

1‑3KV /250‑630A DIN bushing occupies an irreplaceable position within DIN‑standard low‑medium voltage distribution systems. As critical through‑wall insulating parts for oil‑filled distribution transformers, it balances insulation performance, current‑carrying capacity, mechanical reliability and standardized interchangeability. Project designers, electrical contractors and maintenance teams need to match voltage grade, current rating, dimensional parameters and anti‑pollution level for real‑world site conditions. Proper specification selection and standardized installation work together to guarantee stable, long‑term operation of transformers and whole power distribution infrastructure.
