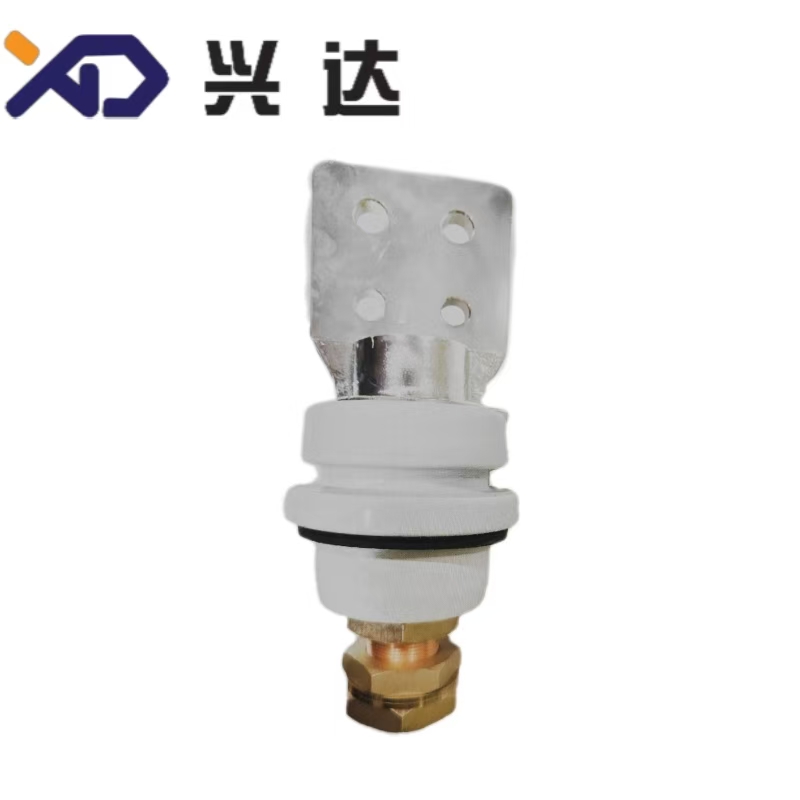

1.2KV/1600‑3150A ANSI Bushing with Shovel‑face Opening for Oil‑Immersed Distribution Transformers

1.2KV 1400‑3150A ANSI Bushing with Scoop‑Face Opening: Definition, Specifications, Advantages and Selection Guide

Introduction

The 1.2KV 1400‑3150A ANSI bushing with scoop‑face opening is a low‑voltage high‑current insulating wall‑through component designed per ANSI power industry standards, widely used for oil‑immersed distribution transformers in North‑American‑style power systems. As a critical feed‑through insulator, it enables live copper conductors to pass through the grounded transformer tank wall while maintaining reliable electrical isolation and high‑current transmission capacity. Its most distinctive mechanical feature is the scoop‑face opening (shovel‑face opening) flange structure, a special mounting geometry specifically adopted for ANSI‑spec transformer tank installation.

This bushing series covers rated voltage of 1.2 kV and broad current ratings ranging from 1400 A up to 3150 A. It is engineered for heavy‑duty low‑voltage side terminals of large‑capacity distribution transformers. The assembly consists of high‑grade porcelain insulator body, scoop‑face mounting flange, copper conductive stud, oil‑resistant sealing gaskets and ANSI‑standard fasteners. The unique scoop‑face opening flange provides stable positioning and uniform gasket compression during tank mounting, which helps avoid oil leakage risks that frequently occur with ordinary round‑flange bushings under high‑current operating conditions.

Compliant with ANSI transformer component standards, this bushing defines unified requirements for dielectric performance, continuous current carrying capability, short‑time withstand current, mechanical mounting dimensions, sealing performance and test protocols. It is extensively applied for new transformer manufacturing, spare‑part replacement and field retrofit projects across North‑America and global markets adopting ANSI specifications. Thanks to standardized scoop‑face opening dimensions, cross‑manufacturer interchangeability is achieved, simplifying procurement and on‑site maintenance work for power contractors and transformer operators.

General Technical Specification Table

Below are industry‑general standard parameters for the 1.2KV 1400‑3150A ANSI bushing with scoop‑face opening series. Custom modified dimensions can be realized for special non‑standard transformer designs.

Note: 4FL / 6FL /10FL stands for quantity of flange mounting holes. All values represent standard series parameters, subject to technical drawings for final project acceptance.

Component Material Breakdown

The 1.2KV 1400‑3150A ANSI bushing with scoop‑face opening is assembled from several core functional parts:

• Porcelain Insulator Body: High‑quality electrical porcelain provides main dielectric insulation. Compact structure is optimized for low‑voltage high‑current transformer terminal conditions, delivering good mechanical strength and oil‑aging resistance.

• Scoop‑Face Opening Flange: Machined metal flange with special shovel‑shape profile. It matches ANSI‑standard tank cut‑out, distributes tightening force evenly across the sealing gasket, and forms the mechanical mounting interface between bushing and transformer tank.

• High‑Current Copper Conductive Stud: Precision‑processed copper conductor serves as the main current‑carrying path. Large cross‑section design suppresses temperature rise under 1400 A‑3150 A continuous load. External thread section allows connection with busbars and connection hardware.

• Oil‑Resistant Sealing Gaskets: Elastomer gaskets compatible with mineral transformer oil. Placed between scoop‑face flange and transformer tank surface to achieve oil‑tight seal and prevent oil leakage and moisture ingress.

• ANSI‑Standard Fasteners: Nuts, washers and lock accessories for clamping flange and fastening external busbar connections.

•


Core Advantages of 1.2KV 1400‑3150A ANSI Bushing with Scoop‑Face Opening

1. Special Scoop‑Face Opening Flange for Uniform Sealing PressureThe scoop‑face (shovel‑face) opening geometry is purpose‑built for ANSI transformer tank cut‑outs. Unlike ordinary circular flanges, this profile ensures even gasket compression across the whole sealing surface after bolt tightening. It greatly reduces oil‑leakage risk, a common failure point for high‑current low‑voltage transformer terminals.

2. High‑Current Carrying Capacity for Heavy‑Duty Transformer TerminalsCovering current grades from 1400 A up to 3150 A, this bushing family is designed for the low‑voltage side of large‑capacity distribution transformers. The oversized copper stud minimizes joule heating under full continuous load and withstands short‑circuit surge current in grid fault events.

3. ANSI Standard InterchangeabilityMounting hole layout, scoop‑face opening outline, thread specifications and overall dimensions comply with ANSI industry standards. During maintenance or breakdown replacement, operators can install compatible bushings from different suppliers without modifying transformer tank structures, cutting spare‑part inventory costs and shortening equipment downtime.

4. Multiple Flange Hole Configurations AvailableMultiple flange‑hole variants (4‑hole, 6‑hole, 10‑hole) are offered to match different ANSI tank mounting patterns. Engineers can select suitable hole quantity according to torque requirements and transformer mechanical design.

5. Stable Performance under Thermal Cycling and VibrationPorcelain‑metal integrated assembly tolerates temperature cyclic changes caused by transformer load fluctuation, as well as long‑term operating vibration. It avoids gasket loosening and connection overheating under real‑world distribution‑network service conditions.

6. Wide Compatibility with ANSI‑Spec Global ProjectsExcept for North‑American domestic markets, this ANSI‑style bushing is widely adopted in Latin‑America, Middle‑East and other regions that implement American power standards. It supports mass transformer export manufacturing and local field maintenance projects.

7. Available Customization OptionsWhile standard models satisfy most application cases, customized conductive stud length, modified flange parameters and special creepage requirements can be manufactured for non‑standard transformer designs.




Typical Application Scenarios

The 1.2KV 1400‑3150A ANSI bushing with scoop‑face opening is mainly deployed for low‑voltage high‑current terminals of power transformers following ANSI specifications:

• Oil‑immersed distribution transformers for North‑American municipal power grids

• Large‑capacity pad‑mounted transformers

• Industrial dedicated ANSI‑spec power transformers

• Transformer manufacturing for export to ANSI‑standard countries and regions

• Retrofit, repair and spare‑part replacement for existing ANSI‑type transformers

• Auxiliary power transformers for energy and industrial facilities

•


Installation & Maintenance Best Practices

Proper installation and regular inspection are essential to maximize service life for ANSI scoop‑face opening bushing:

1. Complete visual inspection before installation. Check porcelain insulator for cracks or chipping; verify copper stud is free of deformation; confirm sealing gaskets and metal fittings are intact.

2. Clean transformer tank mounting surface thoroughly. Remove welding slag, burrs, paint residues and debris to guarantee full contact between scoop‑face flange and tank wall.

3. Align the outline of scoop‑face opening with tank cut‑out profile correctly before inserting bolts. Misaligned positioning will result in uneven gasket pressure and potential oil leakage.

4. Tighten mounting bolts in cross‑sequence to achieve uniform torque. Over‑torque may damage porcelain insulator; insufficient torque leads to sealing failure.

5. After installation, perform oil‑tightness test to check for oil seepage points at the flange joint.

6. For external busbar connection, apply correct torque on copper stud nuts to avoid poor contact and abnormal overheating under high‑current load.

7. During periodic maintenance, check for oil stains around flange area, inspect fastening tightness and porcelain surface condition. Replace aged gaskets if oil leakage traces are found.

8. Prevent hard impact to porcelain parts during transportation, lifting and installation operations.




Product Selection Guide

When specifying 1.2KV 1400‑3150A ANSI bushing with scoop‑face opening for projects, follow these selection steps:

1. Confirm rated voltage: this series applies for 1.2 kV low‑voltage transformer terminals.

2. Select rated current (1400 A /1600 A /2000 A /2500 A /3150 A) matching transformer low‑side nominal current.

3. Verify scoop‑face opening outline, tank cut‑out dimension, flange hole quantity (4‑hole,6‑hole,10‑hole) and mounting thread size to match transformer tank mechanical layout.

4. Check total mounting height H to ensure enough internal and external assembly clearance inside and outside transformer tank.

5. Evaluate site environmental conditions. For damp or polluted locations, confirm whether enhanced creepage variant is required.

6. Confirm stud length and thread specification to fit customer‑side busbar connection hardware.




Common Operational Issues

1. Oil leakage at flange joint: Usually caused by misaligned scoop‑face opening fit, damaged gasket, dirty tank surface or uneven bolt tightening torque. Re‑disassembly, surface cleaning and gasket replacement can resolve most such cases.

2. Terminal overheating under load: Arises from insufficient tightening torque on copper stud nuts, poor busbar contact, or mismatched current rating. Re‑torque connection hardware or upgrade to higher‑current model.

3. Porcelain damage: Mostly induced by mechanical collision during handling or excessive bolt torque during installation. Handle with care and follow recommended torque values.




Conclusion

1.2KV 1400‑3150A ANSI bushing with scoop‑face opening is a vital high‑current low‑voltage insulator for ANSI‑compliant oil‑immersed transformers. Its unique scoop‑face flange design solves long‑standing sealing challenges for heavy‑current transformer terminals. With multiple current grades and flange‑hole configurations, it supports new production, aftermarket replacement and global export‑oriented transformer projects. Designers and field technicians should fully verify current rating, scoop‑face opening dimensions, hole layout and torque requirements. Correct part selection and standardized installation will secure long‑term reliable operation for ANSI‑style distribution transformers.
